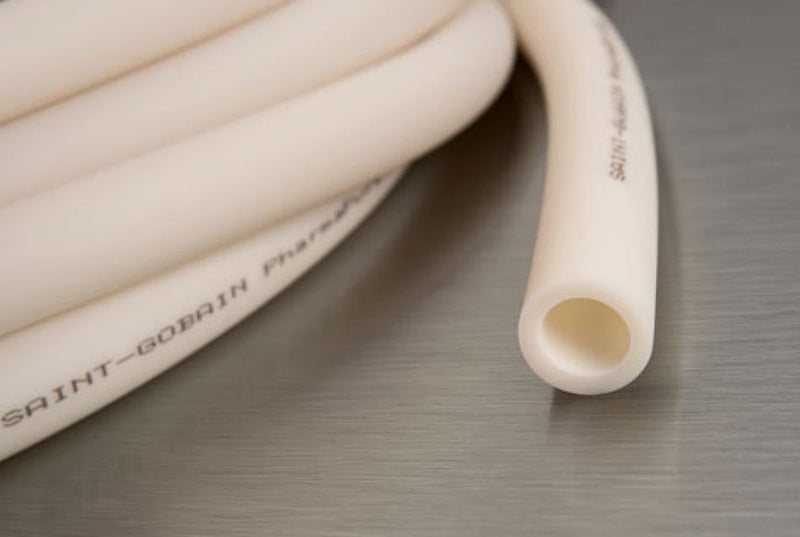

AY242606 PharMed® by Saint Gobain | BPT Series | Biocompatible Peristaltic Pump Tubing | 1/32" ID x 5/32" OD x 1/16" Wall | 25' Package Length
AY242606 PharMed® by Saint Gobain | BPT Series | Biocompatible Peristaltic Pump Tubing | 1/32" ID x 5/32" OD x 1/16" Wall | 25' Package Length
AY242606 PharMed® by Saint Gobain | BPT Series | Biocompatible Peristaltic Pump Tubing | 1/32" ID x 5/32" OD x 1/16" Wall | 25' Package Length

AY242606 PharMed® by Saint Gobain | BPT Series | Biocompatible Peristaltic Pump Tubing | 1/32" ID x 5/32" OD x 1/16" Wall | 25' Package Length

Save $25.31 Save $25.31
$88.59
$88.59 - $88.59
$88.59
$63.28
$63.28 - $63.28
$63.28

Saint Gobain
PharMed® BPT | Biocompatible Peristaltic Pump Tubing

PharMed® BPT Tubing has been formulated to withstand the rigors of peristaltic pumping action, while providing the biocompatible fluid surface required in sensitive bioprocess applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 25 FT

Specifications for Variant SKU: AY242606 Saint Gobain
Series: PharMed
Hose Color(s): White/Off-White
Internal Diameter: 0.03125in
Outer Diameter: 0.15625in
Tubing Construction: Polypropylene Blend
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable ISO 10993 Requirements, FDA 21 CFR Part 177.2600, NSF 51
Biocompatible Peristaltic Pump Tubing

PharMed® BPT Tubing

PharMed® BPT tubing is ideal for use in clean-in-place systems. It is compatible with virtually all commercial cleaners and sanitizers and can be repeatedly autoclaved up to five cycles without affecting overall service life. PharMed BPT also withstands 50kGy of gamma radiation with minimal effect on physical properties.

1

What is this product used for?
  • Cell Harvest and Media Process Systems
  • Cell Chromatography Fluid Transfer
  • Bioreactor Process Lines
  • Production Filtration and Fermentation
  • Diagnostics and Laboratory Testing
  • Shear-Sensitive Fluid Transfer
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Opaque Cream

Maximum Recommended Operating Temp °F (°C)

275°F (135°C)

Low Temperature Embrittlement, °F (°C)

-75°F (-59°C)

Specifications

Meets the requirements of USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Outlasts silicone tubing in peristaltic pumps.
  • Withstands repeated autoclaving.
  • Multiple manufacturing sites.
  • Less permeable to gases and vapors than silicone tubing.
4

Which sizes or configurations are available?
Part
Number		 Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Bend
Radius
(in.)		 Max. Working
Pressure
at 73 deg. F
(PSI)		 Max. Working
Pressure
at 180 deg. F
(PSI)		 Vacuum
Rating
at 73 deg. F
(in. Hg)		 Vacuum
Rating
at 180 deg. F
(in. Hg)		 Length
AY242606 .020" .145" 1/16" 1/8" 115 PSI 72 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242605 1/32" 5/32" 1/16" 1/8" 78 PSI 49 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242002 1/16" 1/8" 1/32" 1/4" 25 PSI 14 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242003 1/16" 3/16" 1/16" 1/8" 43 PSI 27 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242005 3/32" 7/32" 1/16" 1/4" 30 PSI 19 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242006 1/8" 3/16" 1/32" 1/2" 13 PSI 8 PSI 25.0 in. Hg 15.0 in. Hg 25ft
AY242007 1/8" 1/4" 1/16" 1/2" 24 PSI 15 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242012 3/16" 5/16" 1/16" 5/8" 17 PSI 10 PSI 29.9 in. Hg 27.0 in. Hg 25ft
AY242017 1/4" 3/8" 1/16" 7/8" 13 PSI 8 PSI 25.0 in. Hg 15.0 in. Hg 25ft
AY242019 1/4" 1/2" 1/8" 3/4" 24 PSI 15 PSI 29.9 in. Hg 29.9 in. Hg 25ft
AY242022 5/16" 7/16" 1/16" 1-1/4" 11 PSI 6 PSI 15.0 in. Hg 9.0 in. Hg 25ft
AY242027 3/8" 1/2" 1/16" 1-3/8" 9 PSI 5 PSI 10.0 in. Hg 6.0 in. Hg 25ft
AY242029 3/8" 5/8" 1/8" 1-1/8" 17 PSI 10 PSI 29.9 in. Hg 27.0 in. Hg 25ft
AY242038 1/2" 3/4" 1/8" 1-1/8" 10 PSI 8 PSI 25.0 in. Hg 15.0 in. Hg 25ft
AY242046 5/8" 7/8" 1/8" 2-3/4" 11 PSI 6 PSI 15.0 in. Hg 9.0 in. Hg 25ft
AY242053 3/4" 1" 1/8" 3-1/2" 9 PSI 5 PSI 10.0 in. Hg 6.0 in. Hg 25ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain PharMed® BPT Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
