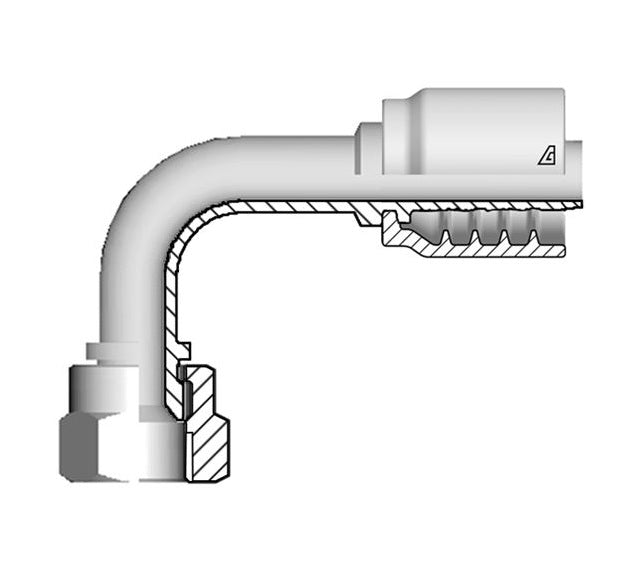

B-0404-FJ9S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -04 Hose ID x -04 Female JIC 37° | Steel

B-0404-FJ9S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -04 Hose ID x -04 Female JIC 37° | Steel | Pack of 5

Save $2.74 Save $2.74
$9.60
$9.60 - $9.60
$9.60
$6.86
$6.86 - $6.86
$6.86

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-0404-FJ9S Kuriyama | 5 |
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/4in Female JIC
Material(s): Steel
Special Properties: Short Drop
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FJ9S 04 1/4" 6.4mm 04 7/16-20 27.0mm 21.0mm 16mm 0.14 lbs
B-0405-FJ9S 04 1/4" 6.4mm 05 1/2-20 26.5mm 23.5mm 17mm 0.15 lbs
B-0406-FJ9S 04 1/4" 6.4mm 06 9/16-18 31.0mm 23.0mm 19mm 0.16 lbs
B-0506-FJ9S 05 5/16" 7.9mm 06 9/16-18 31.5mm 23mm 19mm 0.20 lbs
B-0606-FJ9S 06 3/8" 9.5mm 06 9/16-18 42.3mm 23.0mm 19mm 0.20 lbs
B-0608-FJ9S 06 3/8" 9.5mm 08 3/4-16 48.8mm 29.0mm 25mm 0.28 lbs
B-0806-FJ9S 08 1/2" 12.7mm 06 9/16-18 44.6mm 29.0mm 25mm 0.32 lbs
B-0808-FJ9S 08 1/2" 12.7mm 08 3/4-16 46.4mm 29.0mm 25mm 0.34 lbs
B-0810-FJ9S 08 1/2" 12.7mm 10 7/8-14 45.8mm 32.0mm 27mm 0.36 lbs
B-0812-FJ9S 08 1/2" 12.7mm 12 1-1/16-12 37.3mm 46.0mm 32mm 0.46 lbs
B-1010-FJ9S 10 5/8" 15.9mm 10 7/8-14 49.0mm 32.0mm 27mm 0.49 lbs
B-1012-FJ9S 10 5/8" 15.9mm 12 1-1/16-12 47.9mm 48.0mm 32mm 0.56 lbs
B-1212-FJ9S 12 3/4" 19.0mm 12 1-1/16-12 58.2mm 46.0mm 32mm 0.70 lbs
B-1216-FJ9S 12 3/4" 19.0mm 16 1-5/16-12 53.6mm 53.0mm 38mm 0.83 lbs
B-1616-FJ9S 16 1" 25.4mm 16 1-5/16-12 74.0mm 56.0mm 38mm 1.14 lbs
