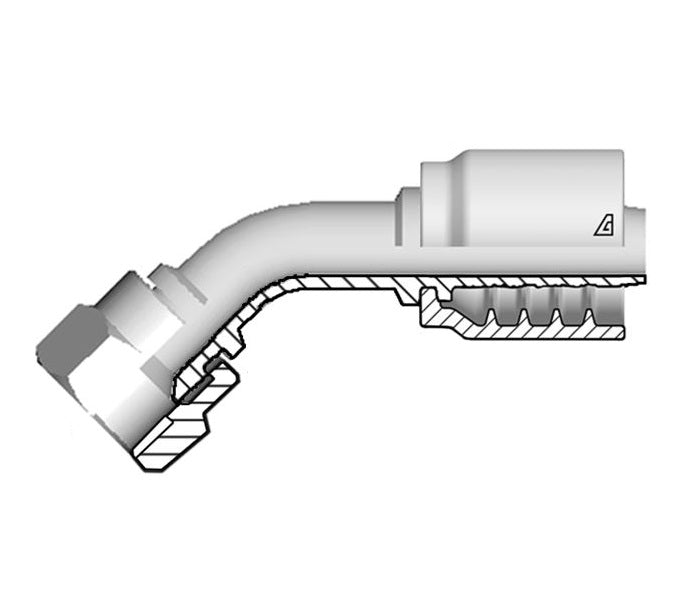

B-0405-FJ45 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -04 Hose ID x -05 Female JIC 37° | Steel

Save $5.34

$18.69

$18.69 - $18.69

$18.69

$13.35

$13.35 - $13.35

$13.35

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Seat

Specifications for Variant SKU: B-0405-FJ45 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb, 5/16in Female JIC
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FJ45	04	1/4"	6.4mm	04	7/16-20	36.6mm	10mm	16mm	0.14 lbs
B-0405-FJ45	04	1/4"	6.4mm	05	1/2-20	37.2mm	12mm	17mm	0.15 lbs
B-0406-FJ45	04	1/4"	6.4mm	06	9/16-18	39.4mm	11mm	19mm	0.16 lbs
B-0506-FJ45	05	5/16"	7.9mm	06	9/16-18	42.8mm	12mm	19mm	0.19 lbs
B-0606-FJ45	06	3/8"	9.5mm	06	9/16-18	46.3mm	11mm	19mm	0.20 lbs
B-0608-FJ45	06	3/8"	9.5mm	08	3/4-16	47.2mm	15mm	25mm	0.26 lbs
B-0806-FJ45	08	1/2"	12.7mm	06	9/16-18	50.2mm	15mm	19mm	0.30 lbs
B-0808-FJ45	08	1/2"	12.7mm	08	3/4-16	51.6mm	15mm	25mm	0.32 lbs
B-0810-FJ45	08	1/2"	12.7mm	10	7/8-14	50.7mm	16mm	27mm	0.34 lbs
B-0812-FJ45	08	1/2"	12.7mm	12	1-1/16-12	57.0mm	21mm	32mm	0.45 lbs
B-1010-FJ45	10	5/8"	15.7mm	10	7/8-14	62.2mm	19mm	27mm	0.46 lbs
B-1012-FJ45	10	5/8"	15.9mm	12	1-1/16-12	68.6mm	21mm	32mm	0.55 lbs
B-1212-FJ45	12	3/4"	19.0mm	12	1-1/16-12	67.5mm	21mm	32mm	0.64 lbs
B-1216-FJ45	12	3/4"	19.0mm	16	1-5/16-12	71.4mm	26mm	38mm	0.82 lbs
B-1616-FJ45	16	1"	25.4mm	16	1-5/16-12	79.4mm	24mm	38mm	1.02 lbs
B-1620-FJ45	16	1"	25.4mm	20	1-5/8-12	83.8mm	37mm	50mm	1.07 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
