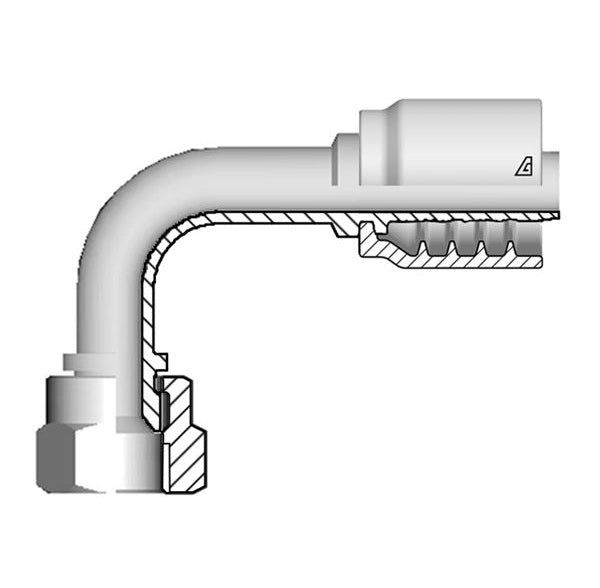

B-0405-FJ9L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | -04 Hose ID x -05 Female JIC 37° | Steel

B-0405-FJ9L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | -04 Hose ID x -05 Female JIC 37° | Steel

Save $6.74 Save $6.74
$23.59
$23.59 - $23.59
$23.59
$16.85
$16.85 - $16.85
$16.85

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-0405-FJ9L Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 5/16in Female JIC
Material(s): Steel
Special Properties: Long Drop
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FJ9L 04 1/4" 6.4mm 04 7/16-20 30.8mm 46mm 16mm 0.17 lbs
B-0405-FJ9L 04 1/4" 6.4mm 05 1/2-20 26.0mm 45mm 17mm 0.20 lbs
B-0406-FJ9L 04 1/4" 6.4mm 06 9/16-18 26.0mm 54mm 17mm 0.27 lbs
B-0606-FJ9L 06 3/8" 9.5mm 06 9/16-18 43.3mm 54mm 19mm 0.27 lbs
B-0608-FJ9L 06 3/8" 9.5mm 08 3/4-16 46.8mm 64mm 25mm 0.28 lbs
B-0808-FJ9L 08 1/2" 12.7mm 08 3/4-16 49.9mm 64mm 25mm 0.33 lbs
B-0810-FJ9L 08 1/2" 12.7mm 10 7/8-14 37.3mm 65mm 27mm 0.42 lbs
B-1010-FJ9L 10 5/8" 15.9mm 10 7/8-14 49.9mm 65mm 27mm 0.68 lbs
B-1212-FJ9L 12 3/4" 19.0mm 12 1-1/16-12 54.1mm 95mm 32mm 0.84 lbs
B-1216-FJ9L 12 3/4" 19.0mm 16 1-5/16-12 66.4mm 103mm 38mm 1.00 lbs
B-1616-FJ9L 16 1" 25.4mm 16 1-5/16-12 78.6mm 114 38mm 1.14 lbs
