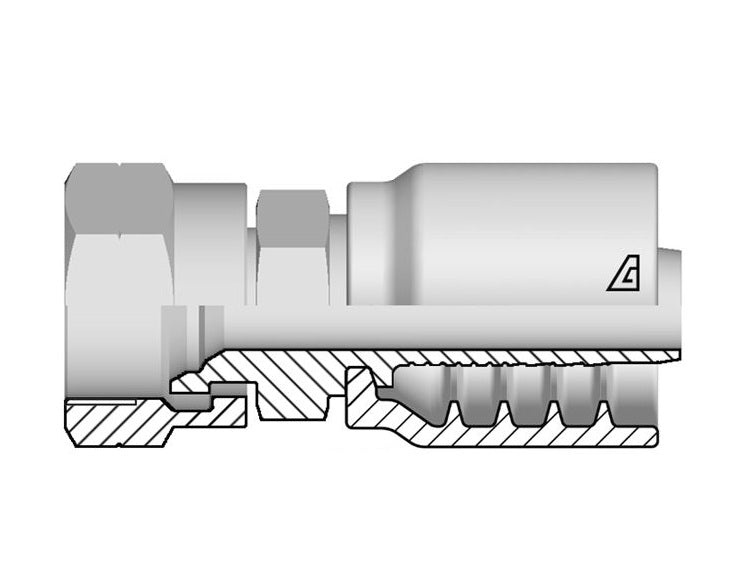

B-0414-FKOS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x M14x1.5 Female Komatsu | Steel

Name: B-0414-FKOS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x M14x1.5 Female Komatsu | Steel
Brand: Kuriyama
SKU: B-0414-FKOS Kuriyama
Price: 9.69 USD
Availability: InStock

Save $3.88

$13.57

$13.57 - $13.57

$13.57

$9.69

$9.69 - $9.69

$9.69

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female Komatsu

Specifications for Variant SKU: B-0414-FKOS Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in)-TPI	(mm)	(mm)	(mm)	lbs/each
B-0414-FKOS	04	1/4"	6.4mm	14	14x1.5	20.8mm	17mm	19mm	0.17 lbs
B-0618-FKOS	06	3/8"	9.5mm	18	18x1.5	21.8mm	19mm	22mm	0.21 lbs
B-0822-FKOS	08	1/2"	12.7mm	22	22x1.5	23.6mm	22mm	27mm	0.31 lbs
B-1024-FKOS	10	5/8"	15.9mm	24	24x1.5	27.1mm	30mm	32mm	0.51 lbs
B-1230-FKOS	12	3/4"	19.0mm	30	30x1.5	27.6mm	30mm	36mm	0.61 lbs
B-1633-FKOS	16	1"	25.4mm	33	33x1.5	35.7mm	36mm	41mm	1.01 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
