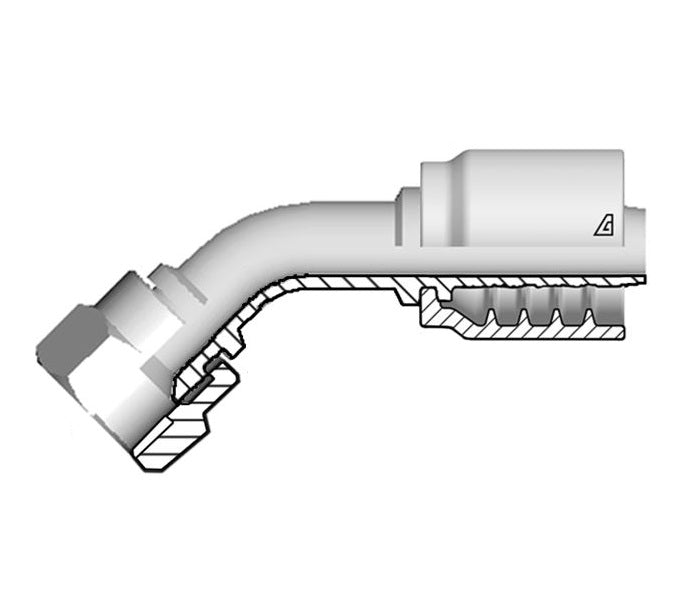

B-0606-FJ45 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -06 Female JIC 37° | Steel

B-0606-FJ45 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -06 Female JIC 37° | Steel | Pack of 5

Save $3.34 Save $3.34
$11.70
$11.70 - $11.70
$11.70
$8.36
$8.36 - $8.36
$8.36

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-0606-FJ45 Kuriyama | 5 |
Brand: Alfagomma
Series: B Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Female JIC
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FJ45 04 1/4" 6.4mm 04 7/16-20 36.6mm 10mm 16mm 0.14 lbs
B-0405-FJ45 04 1/4" 6.4mm 05 1/2-20 37.2mm 12mm 17mm 0.15 lbs
B-0406-FJ45 04 1/4" 6.4mm 06 9/16-18 39.4mm 11mm 19mm 0.16 lbs
B-0506-FJ45 05 5/16" 7.9mm 06 9/16-18 42.8mm 12mm 19mm 0.19 lbs
B-0606-FJ45 06 3/8" 9.5mm 06 9/16-18 46.3mm 11mm 19mm 0.20 lbs
B-0608-FJ45 06 3/8" 9.5mm 08 3/4-16 47.2mm 15mm 25mm 0.26 lbs
B-0806-FJ45 08 1/2" 12.7mm 06 9/16-18 50.2mm 15mm 19mm 0.30 lbs
B-0808-FJ45 08 1/2" 12.7mm 08 3/4-16 51.6mm 15mm 25mm 0.32 lbs
B-0810-FJ45 08 1/2" 12.7mm 10 7/8-14 50.7mm 16mm 27mm 0.34 lbs
B-0812-FJ45 08 1/2" 12.7mm 12 1-1/16-12 57.0mm 21mm 32mm 0.45 lbs
B-1010-FJ45 10 5/8" 15.7mm 10 7/8-14 62.2mm 19mm 27mm 0.46 lbs
B-1012-FJ45 10 5/8" 15.9mm 12 1-1/16-12 68.6mm 21mm 32mm 0.55 lbs
B-1212-FJ45 12 3/4" 19.0mm 12 1-1/16-12 67.5mm 21mm 32mm 0.64 lbs
B-1216-FJ45 12 3/4" 19.0mm 16 1-5/16-12 71.4mm 26mm 38mm 0.82 lbs
B-1616-FJ45 16 1" 25.4mm 16 1-5/16-12 79.4mm 24mm 38mm 1.02 lbs
B-1620-FJ45 16 1" 25.4mm 20 1-5/8-12 83.8mm 37mm 50mm 1.07 lbs
