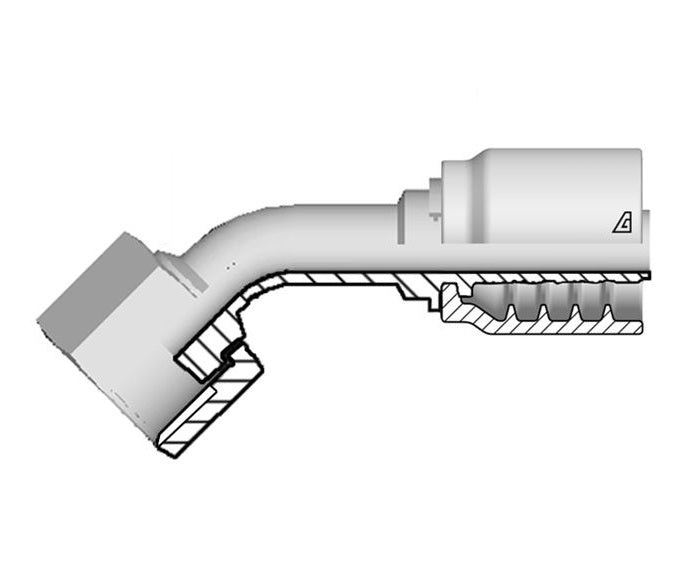

B-0606-FO45 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -06 Female O-Ring Face Seal | Steel | Pack of 5

Save $5.18

$18.13

$18.13 - $18.13

$18.13

$12.95

$12.95 - $12.95

$12.95

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female O-Ring Face Seal

Specifications for Variant SKU: B-0606-FO45 Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, 3/8in Female O-Ring Face Seal
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FO45	04	1/4"	6.4mm	04	9/16-18	41.1mm	11.0mm	17mm	0.15 lbs
B-0406-FO45	04	1/4"	6.4mm	06	11/16-16	46.1mm	11.0mm	22mm	0.19 lbs
B-0506-FO45	05	5/16"	7.9mm	06	11/16-16	46.3mm	12.0mm	22mm	0.22 lbs
B-0606-FO45	06	3/8"	9.5mm	06	11/16-16	47.4mm	12.0mm	22mm	0.23 lbs
B-0608-FO45	06	3/8"	9.5mm	08	13/16-16	51.2mm	15.0mm	24mm	0.27 lbs
B-0806-FO45	08	1/2"	12.7mm	06	11/16-16	47.1mm	16.0mm	22mm	0.26 lbs
B-0808-FO45	08	1/2"	12.7mm	08	13/16-16	47.1mm	16.0mm	24mm	0.29 lbs
B-0810-FO45	08	1/2"	12.7mm	10	1-14	50.4mm	16.5mm	30mm	0.43 lbs
B-1010-FO45	10	5/8"	15.9mm	10	1-14	57.7mm	17.0mm	30mm	0.49 lbs
B-1012-FO45	10	5/8"	15.9mm	12	1-3/16-12	63.1mm	21.0mm	36mm	0.64 lbs
B-1212-FO45	12	3/4"	19.0mm	12	1-3/16-12	63.5mm	21.0mm	36mm	0.76 lbs
B-1216-FO45	12	3/4"	19.0mm	16	1-7/16-12	70.7mm	24.0mm	41mm	0.88 lbs
B-1616-MOFS	16	1"	25.4mm	16	1-7/16-12	82.4mm	26.0mm	41mm	1.12 lbs
B-1620-FO45	16	1"	25.4mm	20	1-11/16-12	85.4mm	26.0mm	50mm	1.42 lbs
