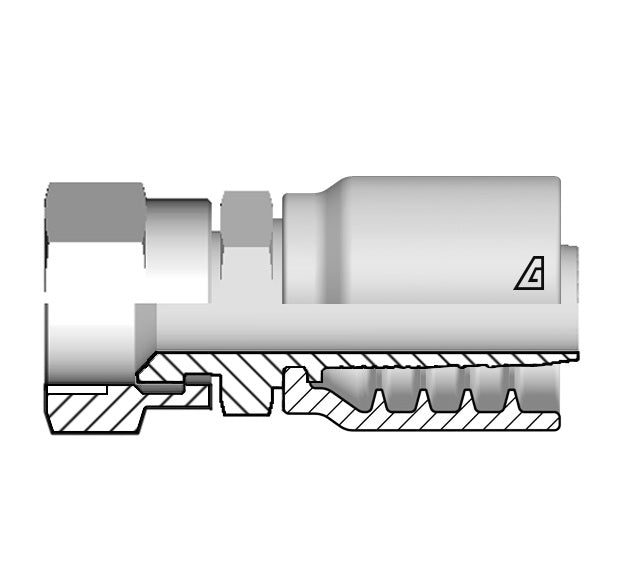

B-0606-FSAE Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Female SAE Swivel 45° Seat | Steel

Name: B-0606-FSAE Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Female SAE Swivel 45° Seat | Steel
Brand: Kuriyama
SKU: B-0606-FSAE Kuriyama
Price: 9.65 USD
Availability: InStock

Save $3.86

$13.51

$13.51 - $13.51

$13.51

$9.65

$9.65 - $9.65

$9.65

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female SAE Swivel 45° Seat

Specifications for Variant SKU: B-0606-FSAE Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0606-FSAE	06	3/8"	9.5mm	06	5/8-18	23.3mm	19mm	22mm	0.23 lbs
B-1212-FSAE	12	3/4"	19.0mm	12	1-1/16-14	28.6mm	27mm	32mm	0.52 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
