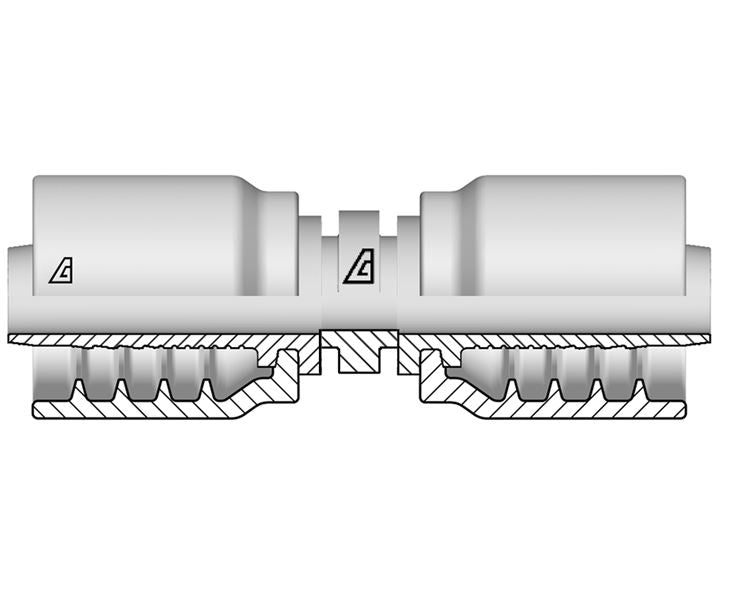

B-0606-HMEN Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Mender | -06 Hose ID x -06 Hose ID | Steel

Save $4.73

$16.56

$16.56 - $16.56

$16.56

$11.83

$11.83 - $11.83

$11.83

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Mender | Hose Barb x Hose Barb

Specifications for Variant SKU: B-0606-HMEN Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel

Part Number	Dash Size	Hose ID Size		Weight
Part Number	Dash Size	(in.)	(mm)	Weight
B-0404-HMEN	04	1/4"	6.4mm	0.13 lbs
B-0505-HMEN	05	5/16"	7.9mm	0.15 lbs
B-0606-HMEN	06	3/8"	9.5mm	0.18 lbs
B-0808-HMEN	08	1/2"	12.7mm	0.25 lbs
B-1010-HMEN	10	5/8"	15.9mm	0.32 lbs
B-1212-HMEN	12	3/4"	19.0mm	0.56 lbs
B-1616-HMEN	16	1"	25.4mm	1.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
