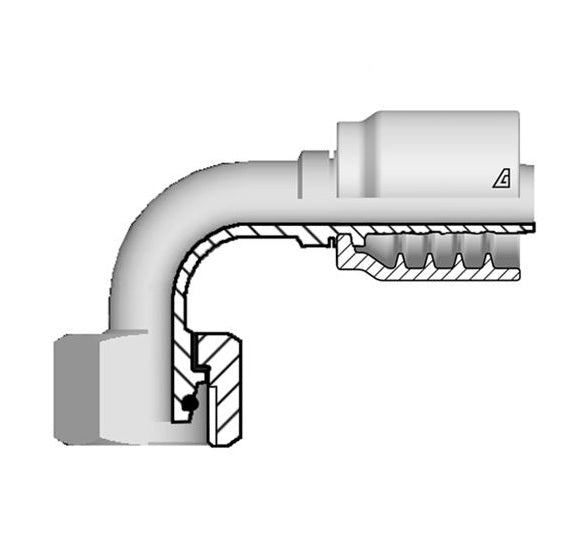

B-0620-FM9H Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | -06 Hose ID x 20mm Female Metric 24° Cone with O-Ring | Steel

B-0620-FM9H Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | -06 Hose ID x 20mm Female Metric 24° Cone with O-Ring | Steel

Save $5.08 Save $5.08
$17.78
$17.78 - $17.78
$17.78
$12.70
$12.70 - $12.70
$12.70

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | Hose Barb x Female Metric 24° Cone with O-Ring
Specifications for Variant SKU: B-0620-FM9H Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) (mm) (mm) (mm) (mm) lbs/each
B-0416-FM9H 04 1/4" 6.4mm 16x1.5 8mm 27.3mm 33.0mm 19mm 0.17 lbs
B-0418-FM9H 04 1/4" 6.4mm 18x1.5 10mm 26.8mm 34.0mm 22mm 0.20 lbs
B-0520-FM9H 05 5/16" 7.9mm 20x1.5 12mm 33.2mm 39.0mm 24mm 0.27 lbs
B-0618-FM9H 06 3/8" 9.5mm 18x1.5 10mm 34.3mm 38.5mm 24mm 0.27 lbs
B-0620-FM9H 06 3/8" 9.5mm 20x1.5 12mm 34.3mm 38.5mm 24mm 0.28 lbs
B-0622-FM9H 06 3/8" 9.5mm 22x1.5 14mm 34.3mm 40.5mm 27mm 0.33 lbs
B-0824-FM9H 08 1/2" 12.7mm 24x1.5 16mm 39.8mm 41.5mm 30mm 0.42 lbs
B-1030-FM9H 10 5/8" 15.9mm 30x2.0 20mm 47.9mm 55.0mm 36mm 0.68 lbs
B-1230-FM9H 12 3/4" 19.0mm 30x2.0 20mm 50.6mm 58.0mm 36mm 0.84 lbs
B-1236-FM9H 12 3/4" 19.0mm 36x2.0 25mm 50.6mm 59.5mm 46mm 1.14 lbs
B-1642-FM9H 16 1" 25.4mm 42x2.0 30mm 75.6mm 79.0mm 50mm 1.65 lbs
