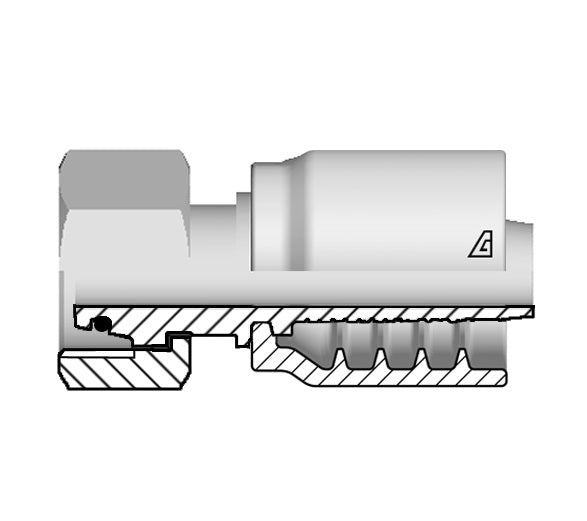

B-0622-FMOL Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | -06 Hose ID x 22mm Female Metric 24° Cone with O-Ring | Steel

B-0622-FMOL Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | -06 Hose ID x 22mm Female Metric 24° Cone with O-Ring | Steel

Save $3.95 Save $3.95
$13.83
$13.83 - $13.83
$13.83
$9.88
$9.88 - $9.88
$9.88

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | Hose Barb x Female Metric 24° Cone with O-Ring
Specifications for Variant SKU: B-0622-FMOL Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 CH2 Weight
DashSize (in.) (mm) (mm) (mm) (mm) lbs/each
B-0412-FMOL 04 1/4" 6.4mm 12x1.5 6mm 24.8mm 14mm 0.11 lbs
B-0414-FMOL 04 1/4" 6.4mm 14x1.5 8mm 24.4mm 17mm 0.13 lbs
B-0416-FMOL 04 1/4" 6.4mm 16x1.5 10mm 25.4mm 19mm 0.15 lbs
B-0516-FMOL 05 5/16" 7.9mm 16x1.5 10mm 25.4mm 19mm 0.16 lbs
B-0616-FMOL 06 3/8" 9.5mm 16x1.5 10mm 25.4mm 19mm 0.18 lbs
B-0618-FMOL 06 3/8" 9.5mm 18x1.5 12mm 25.4mm 22mm 0.20 lbs
B-0622-FMOL 06 3/8" 9.5mm 22x1.5 15mm 27.4mm 27mm 0.27 lbs
B-0822-FMOL 08 1/2" 12.7mm 22x1.5 15mm 28.2mm 27mm 0.30 lbs
B-0826-FMOL 08 1/2" 12.7mm 26x1.5 18mm 29.2mm 32mm 0.38 lbs
B-1026-FMOL 10 5/8" 15.9mm 26x1.5 18mm 29.2mm 32mm 0.40 lbs
B-1230-FMOL 12 3/4" 19.0mm 30x2.0 22mm 31.7mm 36mm 0.55 lbs
B-1636-FMOL 16 1" 25.4mm 36x2.0 28mm 33.6mm 41mm 0.77 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
