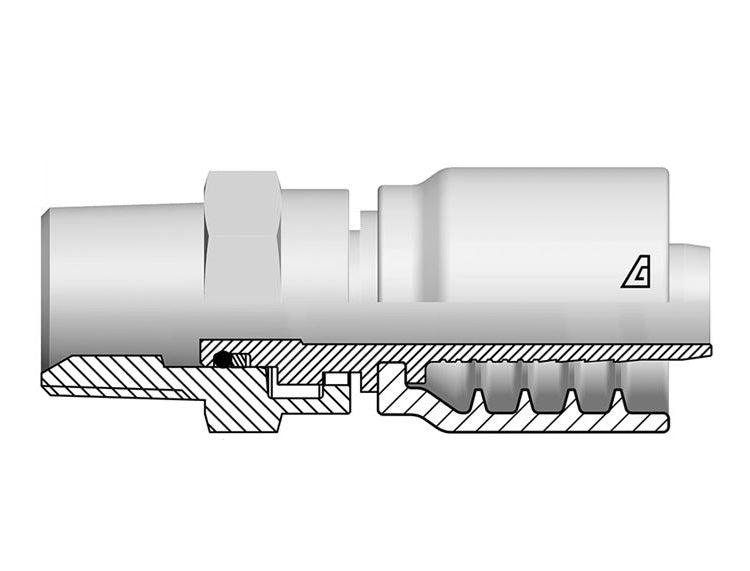

B-0806-MNPS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x -06 Male NPTF 60° Seat Swivel | Steel

B-0806-MNPS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x -06 Male NPTF 60° Seat Swivel | Steel

Save $5.07 Save $5.07
$17.74
$17.74 - $17.74
$17.74
$12.67
$12.67 - $12.67
$12.67

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat Swivel
Specifications for Variant SKU: B-0806-MNPS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/8in Male NPTF
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-MNPS 04 1/4" 6.4mm 04 1/4-18 37.6mm 17mm 0.16 lbs
B-0406-MNPS 04 1/4" 6.4mm 06 3/8-18 39.5mm 22mm 0.22 lbs
B-0604-MNPS 06 3/8" 9.5mm 04 1/4-18 39.6mm 17mm 0.18 lbs
B-0606-MNPS 06 3/8" 9.5mm 06 3/8-18 37.5mm 22mm 0.24 lbs
B-0608-MNPS 06 3/8" 9.5mm 08 1/2-14 43.5mm 25mm 0.30 lbs
B-0806-MNPS 08 1/2" 12.7mm 06 3/8-18 38.3mm 22mm 0.33 lbs
B-0808-MNPS 08 1/2" 12.7mm 08 1/2-14 42.3mm 25mm 0.59 lbs
B-1212-MNPS 12 3/4" 19.0mm 12 3/4-14 50.1mm 32mm 0.99 lbs
B-1616-MNPS 16 1" 25.4mm 16 1-11-1/2 57.9mm 41mm 1.06 lbs
