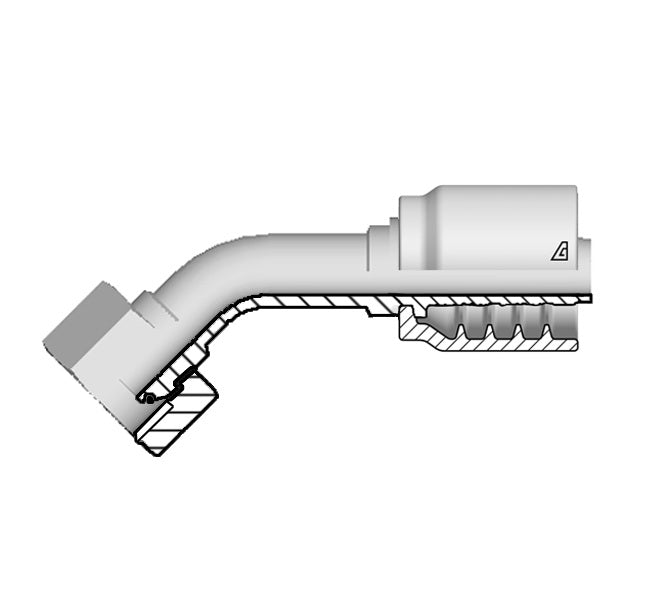

B-0810-FBO4 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -08 Hose ID x -10 Female BSPP 60° Cone with O-Ring | Steel

B-0810-FBO4 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -08 Hose ID x -10 Female BSPP 60° Cone with O-Ring | Steel

Save $7.59 Save $7.59
$26.57
$26.57 - $26.57
$26.57
$18.98
$18.98 - $18.98
$18.98

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female BSPP 60° Cone with O-Ring
Specifications for Variant SKU: B-0810-FBO4 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Hose Barb, 5/8in Female BSPP
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FBO4 04 1/4" 6.4mm 04 1/4-19 45.5mm 15.0mm 19mm 0.17 lbs
B-0406-FBO4 04 1/4" 6.4mm 06 3/8-19 41.5mm 18.0mm 22mm 0.21 lbs
B-0506-FBO4 05 5/16" 7.9mm 06 3/8-19 45.1mm 19.0mm 22mm 0.24 lbs
B-0606-FBO4 06 3/8" 9.5mm 06 3/8-19 49.9mm 20.5mm 22mm 0.25 lbs
B-0608-FBO4 06 3/8" 9.5mm 08 1/2-14 45.7mm 21.0mm 27mm 0.31 lbs
B-0808-FBO4 08 1/2" 12.7mm 08 1/2-14 55.0mm 21.0mm 27mm 0.36 lbs
B-0810-FBO4 08 1/2" 12.7mm 10 5/8-14 57.2mm 23.0mm 27mm 0.38 lbs
B-0812-FBO4 08 1/2" 12.7mm 12 3/4-14 56.7mm 23.0mm 32mm 0.46 lbs
B-1010-FBO4 10 5/8" 15.9mm 10 5/8-14 64.0mm 21.5mm 27mm 0.42 lbs
B-1012-FBO4 10 5/8" 15.9mm 12 3/4-14 66.5mm 22.5mm 32mm 0.54 lbs
B-1212-FBO4 12 3/4" 19.0mm 12 3/4-14 67.6mm 28.0mm 32mm 0.57 lbs
B-1216-FBO4 12 3/4" 19.0mm 16 1-11 74.5mm 31.5mm 38mm 0.85 lbs
B-1616-FBO4 16 1" 25.4mm 16 1-11 72.5mm 34.0mm 38mm 1.03 lbs
