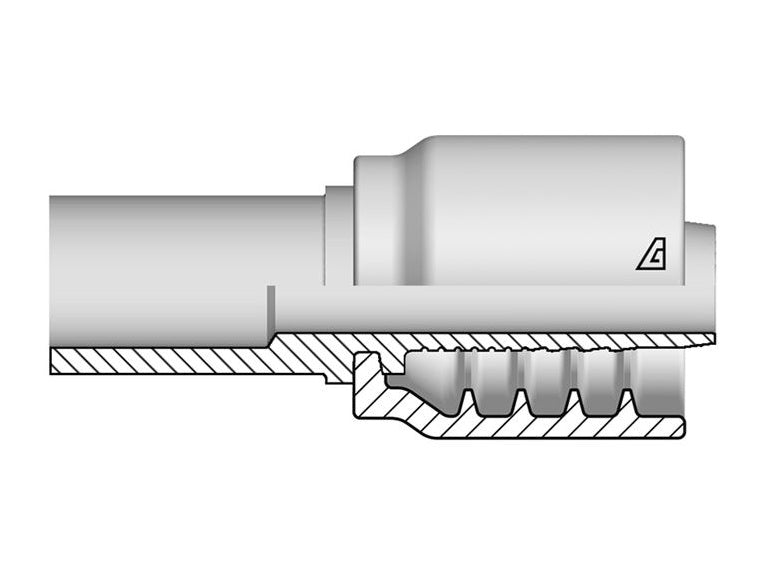

B-0816-MSPS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 2353 | -08 Hose ID x 16mm Metric Straight Standpipe | Steel

B-0816-MSPS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 2353 | -08 Hose ID x 16mm Metric Straight Standpipe | Steel

Save $3.79 Save $3.79
$13.27
$13.27 - $13.27
$13.27
$9.48
$9.48 - $9.48
$9.48

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 2353 | Hose Barb x Metric Straight Standpipe
Specifications for Variant SKU: B-0816-MSPS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 2353
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Dash Size Tube OD C
Cut-Off Factor		 Weight
DashSize (in.) (mm) (mm) (mm) lbs/each
B-0408-MSPS 04 1/4" 6.4mm 08 8mm 30.2mm 0.10 lbs
B-0610-MSPS 06 3/8" 9.5mm 10 10mm 30.3mm 0.13 lbs
B-0815-MSPS 08 1/2" 12.7mm 15 15mm 32.1mm 0.20 lbs
B-0816-MSPS 08 1/2" 12.7mm 16 16mm 37.1mm 0.22 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
