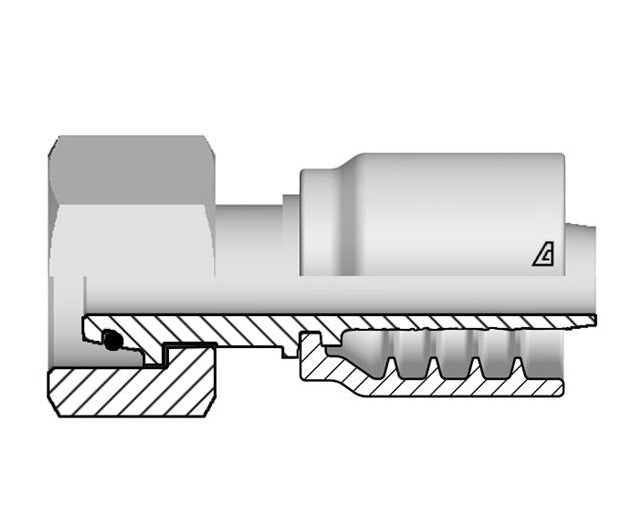

B-0820-FMOH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -08 Hose ID x 20mm Female Metric 24° Cone with O-Ring | Steel

B-0820-FMOH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -08 Hose ID x 20mm Female Metric 24° Cone with O-Ring | Steel

Save $7.73 Save $7.73
$27.06
$27.06 - $27.06
$27.06
$19.33
$19.33 - $19.33
$19.33

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | Hose Barb x Female Metric 24° Cone with O-Ring
Specifications for Variant SKU: B-0820-FMOH Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 CH2 Weight
DashSize (in.) (mm) (mm) (mm) (mm) lbs/each
B-0416-FMOH 04 1/4" 6.4mm 16x1.5 8mm 27.7mm 19mm 0.15 lbs
B-0418-FMOH 04 1/4" 6.4mm 18x1.5 10mm 27.6mm 22mm 0.19 lbs
B-0520-FMOH 05 5/16" 7.9mm 20x1.5 12mm 27.6mm 24mm 0.21 lbs
B-0618-FMOH 06 3/8" 9.5mm 18x1.5 10mm 27.6mm 22mm 0.21 lbs
B-0620-FMOH 06 3/8" 9.5mm 20x1.5 12mm 27.6mm 24mm 0.23 lbs
B-0622-FMOH 06 3/8" 9.5mm 22x1.5 14mm 31.1mm 27mm 0.30 lbs
B-0820-FMOH 08 1/2" 12.7mm 20x1.5 12mm 31.9mm 24mm 0.27 lbs
B-0824-FMOH 08 1/2" 12.7mm 24x1.5 16mm 31.7mm 30mm 0.37 lbs
B-1030-FMOH 10 5/8" 15.9mm 30x2.0 20mm 36.5mm 36mm 0.56 lbs
B-1230-FMOH 12 3/4" 19.0mm 30x2.0 20mm 37.0mm 36mm 0.65 lbs
B-1236-FMOH 12 3/4" 19.0mm 36x2.0 25mm 39.6mm 46mm 0.94 lbs
B-1636-FMOH 16 1" 25.4mm 36x2.0 25mm 41.0mm 46mm 1.06 lbs
B-1642-FMOH 16 1" 25.4mm 42x2.0 30mm 43.1mm 50mm 1.20 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
