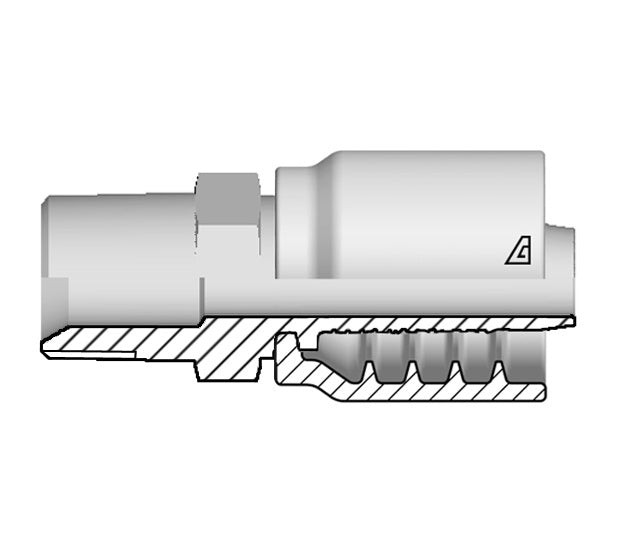

B-1012-MBPT Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID X -12 Male BSPT / JIS | Steel

B-1012-MBPT Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -10 Hose ID X -12 Male BSPT / JIS | Steel

Save $5.40 Save $5.40
$18.91
$18.91 - $18.91
$18.91
$13.51
$13.51 - $13.51
$13.51

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male BSPT / JIS
Specifications for Variant SKU: B-1012-MBPT Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 3/4in Male BSPT
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) lbs/each
B-0402-MBPT 04 1/4" 6.4mm 02 1/8-28 21.3mm 12mm 0.10 lbs
B-0404-MBPT 04 1/4" 6.4mm 04 1/4-19 26.8mm 17mm 0.13 lbs
B-0406-MBPT 04 1/4" 6.4mm 06 3/8-19 27.8mm 19mm 0.15 lbs
B-0506-MBPT 05 5/16" 7.9mm 06 3/8-19 27.8mm 19mm 0.16 lbs
B-0606-MBPT 06 3/8" 9.5mm 06 3/8-19 27.8mm 19mm 0.18 lbs
B-0608-MBPT 06 3/8" 9.5mm 08 1/2-14 32.3mm 22mm 0.24 lbs
B-0808-MBPT 08 1/2" 12.7mm 08 1/2-14 33.1mm 22mm 0.27 lbs
B-1012-MBPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 27mm 0.35 lbs
B-1212-MBPT 12 3/4" 19.0mm 12 3/4-14 34.6mm 27mm 0.44 lbs
B-1216-MBPT 12 3/4" 19.0mm 16 1-11 43.6mm 36mm 0.63 lbs
B-1616-MBPT 16 1" 25.4mm 16 1-11 44.4mm 36mm 0.77 lbs
