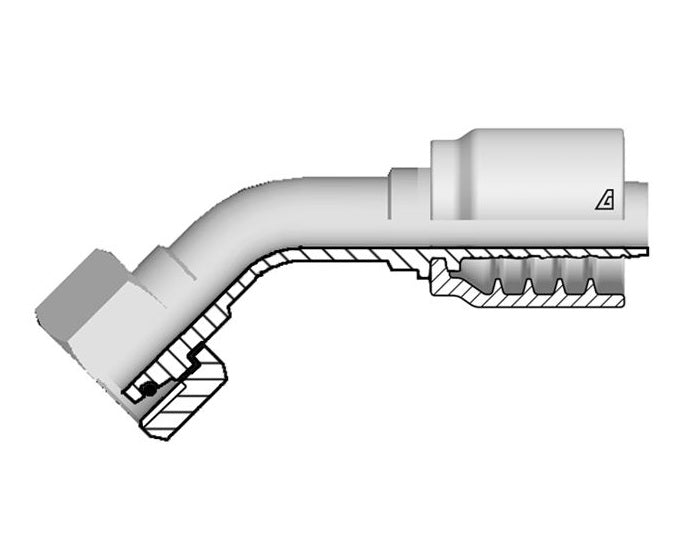

B-1026-FM4L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | -10 Hose ID x 26mm Female Metric 24° Cone with O-Ring | Steel

B-1026-FM4L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | -10 Hose ID x 26mm Female Metric 24° Cone with O-Ring | Steel

Save $10.07 Save $10.07
$35.24
$35.24 - $35.24
$35.24
$25.17
$25.17 - $25.17
$25.17

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | Hose Barb x Female Metric 24° Cone with O-Ring
Specifications for Variant SKU: B-1026-FM4L Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 45 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) (mm) (mm) (mm) (mm) lbs/each
B-0414-FM4L 04 1/4" 6.4mm 14x1.5 8mm 43.0mm 17.5mm 17mm 0.15 lbs
B-0416-FM4L 04 1/4" 6.4mm 16x1.5 10mm 42.0mm 20.0mm 19mm 0.17 lbs
B-0516-FM4L 05 5/16" 7.9mm 16x1.5 10mm 47.5mm 20.0mm 19mm 0.19 lbs
B-0616-FMOL 06 3/8" 9.5mm 16x1.5 10mm 46.8mm 20.0mm 19mm 0.21 lbs
B-0618-FM4L 06 3/8" 9.5mm 18x1.5 12mm 46.8mm 19.5mm 22mm 0.23 lbs
B-0822-FM4L 08 1/2" 12.7mm 22x1.5 15mm 55.0mm 21.0mm 27.0mm 0.35 lbs
B-1026-FM4L 10 5/8" 15.9mm 26x1.5 18mm 65.3mm 24.0mm 32mm 0.50 lbs
B-1230-FM4L 12 3/4" 19.0mm 30x2.0 22mm 69.4mm 32.0mm 36mm 0.69 lbs
B-1636-FM4L 16 1" 25.4mm 36x2.0 28mm 91.4mm 32.0mm 41mm 1.09 lbs
