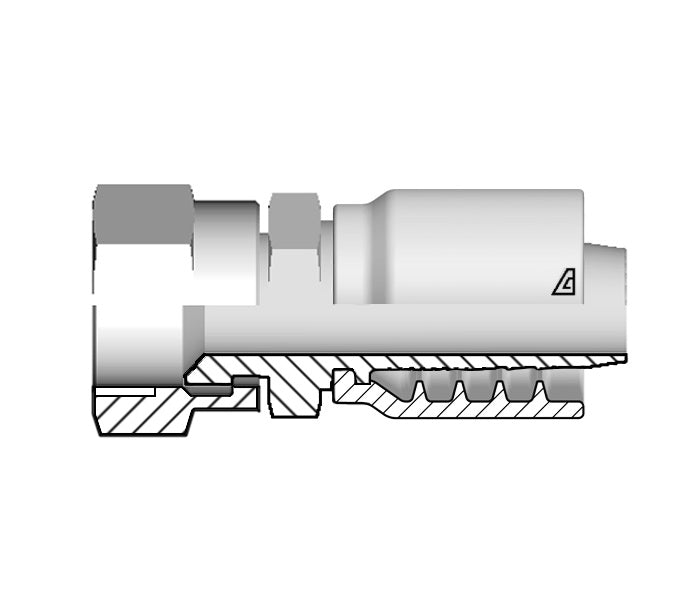

B-1210-FJDH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | -12 Hose ID x -10 Female JIC 37° | Steel

Save $7.29

$25.52

$25.52 - $25.52

$25.52

$18.23

$18.23 - $18.23

$18.23

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | Hose Barb x Female JIC 37° Seat

Specifications for Variant SKU: B-1210-FJDH Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 5/8in Female JIC
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FJDH	04	1/4"	6.4mm	04	7/16-20	19.6mm	14mm	16mm	0.13 lbs
B-0405-FJDH	04	1/4"	6.4mm	05	1/2-20	20.3mm	14mm	17mm	0.14 lbs
B-0406-FJDH	04	1/4"	6.4mm	06	9/16-18	20.3mm	14mm	19mm	0.15 lbs
B-0506-FJDH	05	5/16"	7.9mm	06	9/16-18	20.3mm	14mm	19mm	0.16 lbs
B-0604-FJDH	06	3/8"	9.5mm	04	7/16-20	20.6mm	17mm	16mm	0.17 lbs
B-0606-FJDH	06	3/8"	9.5mm	06	9/16-18	21.3mm	17mm	19mm	0.18 lbs
B-0608-FJSH	06	3/8"	9.5mm	08	3/4-16	24.8mm	19mm	25mm	0.26 lbs
B-0610-FJDH	06	3/8"	9.5mm	10	7/8-14	25.8mm	22mm	27mm	0.29 lbs
B-0806-FJDH	08	1/2"	12.7mm	06	9/16-18	23.1mm	19mm	19mm	0.24 lbs
B-0808-FJDH	08	1/2"	12.7mm	08	3/4-16	25.6mm	19mm	25mm	0.30 lbs
B-0810-FJDH	08	1/2"	12.7mm	10	7/8-14	26.6mm	22mm	27mm	0.32 lbs
B-0812-FJDH	08	1/2"	12.7mm	12	1-1/16-12	28.1mm	25mm	32mm	0.41 lbs
B-1008-FJSH	10	5/8"	15.9mm	08	3/4-16	26.6mm	24mm	25mm	0.37 lbs
B-1010-FJDH	10	5/8"	15.9mm	10	7/8-14	27.6mm	24mm	27mm	0.37 lbs
B-1012-FJDH	10	5/8"	15.9mm	12	1-1/16-12	28.1mm	25mm	32mm	0.45 lbs
B-1210-FJDH	12	3/4"	19.0mm	10	7/8-14	28.1mm	27mm	27mm	0.50 lbs
B-1212-FJDH	12	3/4"	19.0mm	12	1-1/16-12	28.6mm	27mm	32mm	0.52 lbs
B-1214-FJDH	12	3/4"	19.0mm	14	1-3/16-12	29.9mm	32mm	36mm	0.62 lbs
B-1216-FJDH	12	3/4"	19.0mm	16	1-5/16-12	32.1mm	32mm	38mm	0.65 lbs
B-1612-FJDH	16	1"	25.4mm	12	1-1/16-12	31.4mm	32mm	32mm	0.75 lbs
B-1616-FJDH	16	1"	25.4mm	16	1-5/16-12	32.9mm	32mm	38mm	0.77 lbs
B-1620-FJDH	16	1"	25.4mm	20	1-5/8-12	37.5mm	41mm	50mm	1.05 lbs
