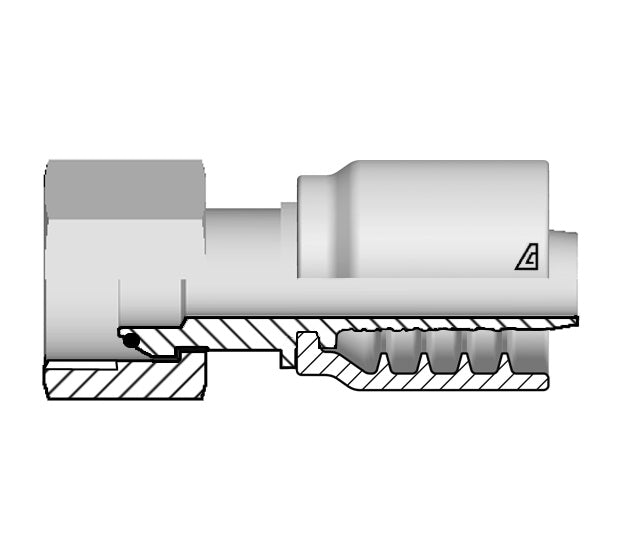

B-1212-FBPO Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x-12 Female BSPP 60° Cone with O-Ring | Steel

B-1212-FBPO Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x-12 Female BSPP 60° Cone with O-Ring | Steel

Save $6.72 Save $6.72
$23.51
$23.51 - $23.51
$23.51
$16.79
$16.79 - $16.79
$16.79

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female BSPP 60° Cone with O-Ring
Specifications for Variant SKU: B-1212-FBPO Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female BSPP
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) lbs/each
B-0404-FBPO 04 1/4" 6.4mm 04 1/4-19 16.0mm 19mm 0.15 lbs
B-0406-FBPO 04 1/4" 6.4mm 06 3/8-19 16.0mm 22mm 0.19 lbs
B-0506-FBPO 05 5/16" 7.9mm 06 3/8-19 23.3mm 22mm 0.20 lbs
B-0604-FBPO 06 3/8" 9.5mm 04 1/4-19 17.3mm 19mm 0.18 lbs
B-0606-FBPO 06 3/8" 9.5mm 06 3/8-19 17.0mm 22mm 0.21 lbs
B-0608-FBPO 06 3/8" 9.5mm 08 1/2-14 24.3mm 27mm 0.27 lbs
B-0808-FBPO 08 1/2" 12.7mm 08 1/2-14 18.0mm 27mm 0.30 lbs
B-0810-FBPO 08 1/2" 12.7mm 10 5/8-14 28.4mm 27mm 0.32 lbs
B-0812-FBPO 08 1/2" 12.7mm 12 3/4-14 22.0mm 32mm 0.41 lbs
B-1010-FBPO 10 5/8" 15.9mm 10 5/8-14 17.1mm 27mm 0.28 lbs
B-1012-FBPO 10 5/8" 15.9mm 12 3/4-14 20.0mm 32mm 0.43 lbs
B-1212-FBPO 12 3/4" 19.0mm 12 3/4-14 20.6mm 32mm 0.43 lbs
B-1216-FBPO 12 3/4" 19.0mm 16 1-11 34.0mm 38mm 0.64 lbs
B-1616-FBPO 16 1" 25.4mm 16 1-11 23.9mm 38mm 0.66 lbs
B-1620-FBPO 16 1" 25.4mm 20 1-1/4-11 39.4mm 50mm 1.18 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
