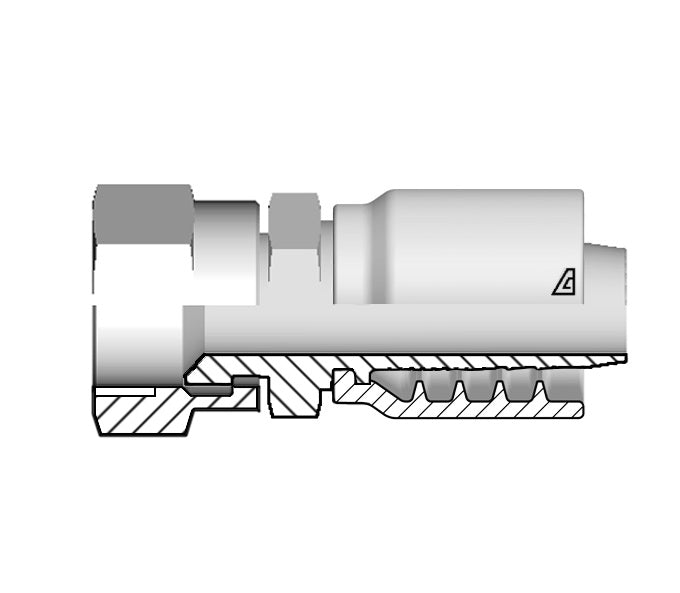

B-1212-FJDH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | -12 Hose ID x -12 Female JIC 37° | Steel

B-1212-FJDH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | -12 Hose ID x -12 Female JIC 37° | Steel | Pack of 5

Save $38.75 Save $38.75
$97.65
$97.65 - $97.65
$97.65
$58.90
$58.90 - $58.90
$58.90

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Dual Hex | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-1212-FJDH Kuriyama | 5 |
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female JIC
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FJDH 04 1/4" 6.4mm 04 7/16-20 19.6mm 14mm 16mm 0.13 lbs
B-0405-FJDH 04 1/4" 6.4mm 05 1/2-20 20.3mm 14mm 17mm 0.14 lbs
B-0406-FJDH 04 1/4" 6.4mm 06 9/16-18 20.3mm 14mm 19mm 0.15 lbs
B-0506-FJDH 05 5/16" 7.9mm 06 9/16-18 20.3mm 14mm 19mm 0.16 lbs
B-0604-FJDH 06 3/8" 9.5mm 04 7/16-20 20.6mm 17mm 16mm 0.17 lbs
B-0606-FJDH 06 3/8" 9.5mm 06 9/16-18 21.3mm 17mm 19mm 0.18 lbs
B-0608-FJSH 06 3/8" 9.5mm 08 3/4-16 24.8mm 19mm 25mm 0.26 lbs
B-0610-FJDH 06 3/8" 9.5mm 10 7/8-14 25.8mm 22mm 27mm 0.29 lbs
B-0806-FJDH 08 1/2" 12.7mm 06 9/16-18 23.1mm 19mm 19mm 0.24 lbs
B-0808-FJDH 08 1/2" 12.7mm 08 3/4-16 25.6mm 19mm 25mm 0.30 lbs
B-0810-FJDH 08 1/2" 12.7mm 10 7/8-14 26.6mm 22mm 27mm 0.32 lbs
B-0812-FJDH 08 1/2" 12.7mm 12 1-1/16-12 28.1mm 25mm 32mm 0.41 lbs
B-1008-FJSH 10 5/8" 15.9mm 08 3/4-16 26.6mm 24mm 25mm 0.37 lbs
B-1010-FJDH 10 5/8" 15.9mm 10 7/8-14 27.6mm 24mm 27mm 0.37 lbs
B-1012-FJDH 10 5/8" 15.9mm 12 1-1/16-12 28.1mm 25mm 32mm 0.45 lbs
B-1210-FJDH 12 3/4" 19.0mm 10 7/8-14 28.1mm 27mm 27mm 0.50 lbs
B-1212-FJDH 12 3/4" 19.0mm 12 1-1/16-12 28.6mm 27mm 32mm 0.52 lbs
B-1214-FJDH 12 3/4" 19.0mm 14 1-3/16-12 29.9mm 32mm 36mm 0.62 lbs
B-1216-FJDH 12 3/4" 19.0mm 16 1-5/16-12 32.1mm 32mm 38mm 0.65 lbs
B-1612-FJDH 16 1" 25.4mm 12 1-1/16-12 31.4mm 32mm 32mm 0.75 lbs
B-1616-FJDH 16 1" 25.4mm 16 1-5/16-12 32.9mm 32mm 38mm 0.77 lbs
B-1620-FJDH 16 1" 25.4mm 20 1-5/8-12 37.5mm 41mm 50mm 1.05 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
