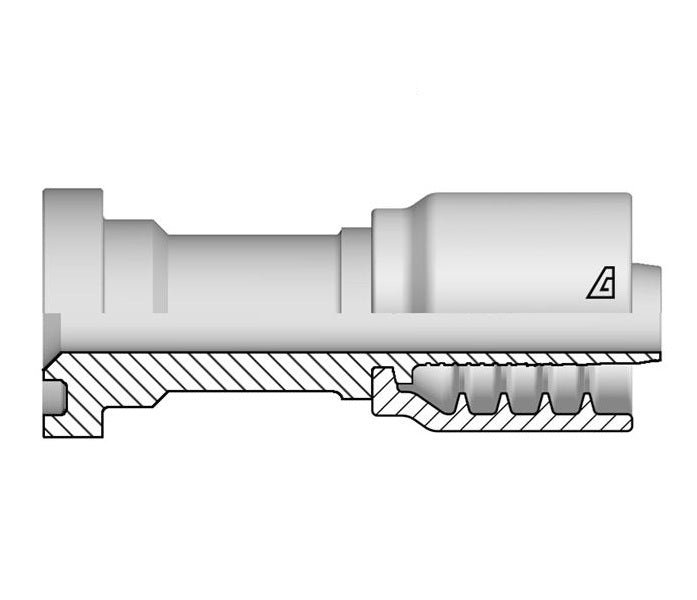

B-1216-C62S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -12 Hose ID x -16 Code 62 Flange | Steel

Save $15.15

$53.03

$53.03 - $53.03

$53.03

$37.88

$37.88 - $37.88

$37.88

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 Flange

Specifications for Variant SKU: B-1216-C62S Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 6000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	lbs/each
B-0808-C62S	08	1/2"	12.7mm	08	1/2"	31.8mm	47.0mm	0.39 lbs
B-0812-C619	08	1/2"	12.7mm	12	3/4"	41.3mm	52.0mm	0.56 lbs
B-1212-C62S	12	3/4"	19.0mm	12	3/4"	41.3mm	52.5mm	0.69 lbs
B-1216-C62S	12	3/4"	19.0mm	16	1"	47.6mm	55.5mm	0.85 lbs
B-1612-C62S	16	1"	25.4mm	12	3/4"	41.3mm	56.4mm	0.89 lbs
B-1616-C62S	16	1"	25.4mm	16	1	47.6mm	56.4mm	1.03 lbs
B-1620-C62S	16	1"	25.4mm	20	1-1/4	54.0mm	63.4mm	1.27 lbs
