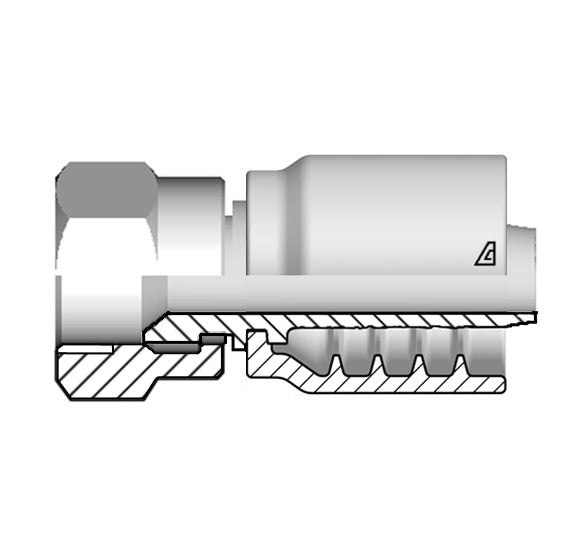

B-1216-FJSH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Female JIC 37° | Steel

B-1216-FJSH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Female JIC 37° | Steel

Save $5.96 Save $5.96
$20.85
$20.85 - $20.85
$20.85
$14.89
$14.89 - $14.89
$14.89

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-1216-FJSH Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Female JIC
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-FJSH 04 1/4" 6.4mm 04 7/16-20 14.6mm 16mm 0.12 lbs
B-0405-FJSH 04 1/4" 6.4mm 05 1/2-20 15.3mm 17mm 0.13 lbs
B-0406-FJSH 04 1/4" 6.4mm 06 9/16-18 15.3mm 19mm 0.14 lbs
B-0505-FJSH 05 5/16" 7.9mm 05 1/2-20 15.3mm 17mm 0.14 lbs
B-0506-FJSH 05 5/16" 7.9mm 06 9/16-18 15.3mm 19mm 0.15 lbs
B-0606-FJSH 06 3/8" 9.5mm 06 9/16-18 15.3mm 19mm 0.16 lbs
B-0608-FJSH 06 3/8" 9.5mm 08 3/4-16 17.8mm 25mm 0.23 lbs
B-0808-FJSH 08 1/2" 12.7mm 08 3/4-16 18.6mm 25mm 0.27 lbs
B-0810-FJSH 08 1/2" 12.7mm 10 7/8-14 19.6mm 27mm 0.29 lbs
B-0812-FJSH 08 1/2" 12.7mm 12 1-1/16-12 22.1mm 32mm 0.36 lbs
B-1010-FJSH 10 5/8" 15.9mm 10 7/8-14 19.6mm 27mm 0.32 lbs
B-1012-FJSH 10 5/8" 15.9mm 12 1-1/16-12 20.1mm 32mm 0.39 lbs
B-1210-FJSH 12 3/4" 19.0mm 10 7/8-14 20.1mm 27mm 0.40 lbs
B-1212-FJSH 12 3/4" 19.0mm 12 1-1/16-12 20.6mm 32mm 0.46 lbs
B-1214-FJSH 12 3/4" 19.0mm 14 1-3/16-12 19.9mm 36mm 0.52 lbs
B-1216-FJSH 12 3/4" 19.0mm 16 1-5/16-12 22.1mm 38mm 0.56 lbs
B-1616-FJSH 16 1" 25.4mm 16 1-5/16-12 23.9mm 38mm 0.69 lbs
B-1620-FJSH 16 1" 25.4mm 20 1-5/8-12 26.5mm 50mm 1.03 lbs
