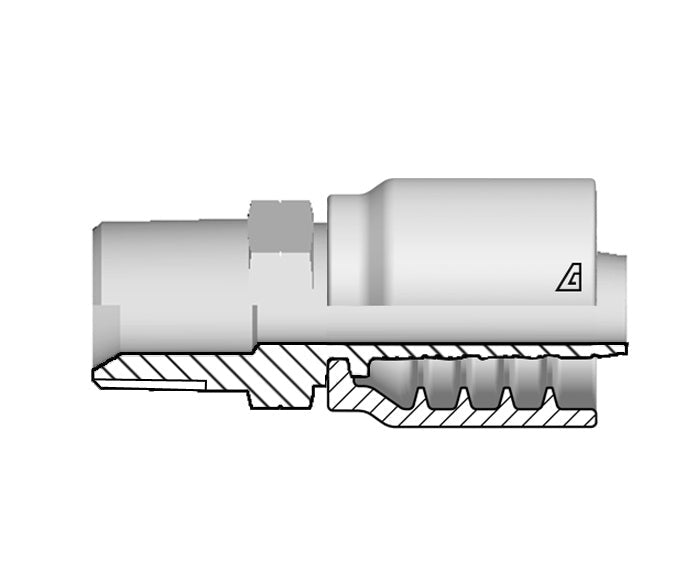

B-1216-MNPT Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Male NPTF 60° Seat | Steel

B-1216-MNPT Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -16 Male NPTF 60° Seat | Steel

Save $7.29 Save $7.29
$25.51
$25.51 - $25.51
$25.51
$18.22
$18.22 - $18.22
$18.22

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat
Specifications for Variant SKU: B-1216-MNPT Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Male NPTF
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (lbs./ft.)
B-0402-MNPT 04 1/4" 6.4mm 02 1/8-27 21.3mm 14.0mm 0.11 lbs
B-0404-MNPT 04 1/4" 6.4mm 04 1/4-18 26.8mm 14.3mm 0.13 lbs
B-0406-MNPT 04 1/4" 6.4mm 06 3/8-18 27.8mm 19.0mm 0.15 lbs
B-0408-MNPT 04 1/4" 6.4mm 08 1/2-14 31.3mm 22.0mm 0.17 lbs
B-0504-MNPT 05 5/16" 7.9mm 04 1/4-18 26.8mm 17.0mm 0.14 lbs
B-0506-MNPT 05 5/16" 7.9mm 06 3/8-18 27.8mm 19.0mm 0.17 lbs
B-0604-MNPT 06 3/8" 9.5mm 04 1/4-18 26.8mm 17.0mm 0.16 lbs
B-0606-MNPT 06 3/8" 9.5mm 06 3/8-18 27.8mm 19.0mm 0.18 lbs
B-0608-MNPT 06 3/8" 9.5mm 08 1/2-14 31.3mm 22.0mm 0.24 lbs
B-0806-MNPT 08 1/2" 12.7mm 06 3/8-18 28.6mm 19.0mm 0.22 lbs
B-0808-MNPT 08 1/2" 12.7mm 08 1/2-14 32.1mm 22.0mm 0.27 lbs
B-0812-MNPT 08 1/2" 12.7mm 12 3/4-14 34.1mm 27.0mm 0.31 lbs
B-1008-MNPT 10 5/8" 15.9mm 08 1/2-14 33.1mm 24.0mm 0.31 lbs
B-1012-MNPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 27.0mm 0.35 lbs
B-1208-MNPT 12 3/4" 19.0mm 08 1/2-14 33.6mm 27.0mm 0.39 lbs
B-1212-MNPT 12 3/4" 19.0mm 12 3/4-14 34.6mm 27.0mm 0.44 lbs
B-1216-MNPT 12 3/4" 19.0mm 16 1-11-1/2 43.6mm 36.0mm 0.63 lbs
B-1612-MNPT 16 1" 25.4mm 12 3/4-14 44.0mm 27.0mm 0.74 lbs
B-1616-MNPT 16 1" 25.4mm 16 1-11-1/2 44.4mm 36.0mm 0.77 lbs
B-1620-MNPT 16 1" 25.4mm 20 1-1/4-11-1/2 47.4mm 46.0mm 1.04 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
