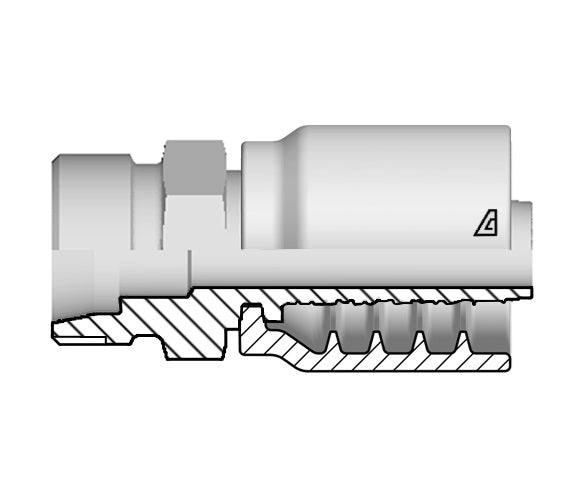

B-1236-MMSH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -12 Hose ID x 36mm Male Metric 24° Seat | Steel

B-1236-MMSH Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | -12 Hose ID x 36mm Male Metric 24° Seat | Steel

Save $10.40 Save $10.40
$36.40
$36.40 - $36.40
$36.40
$26.00
$26.00 - $26.00
$26.00

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | Hose Barb x Male Metric 24° Seat
Specifications for Variant SKU: B-1236-MMSH Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 CH1 Weight
DashSize (in.) (mm) (mm) (mm) (mm) lbs/each
B-0418-MMSH 04 1/4" 6.4mm 18x1.5 10mm 25.3mm 19mm 0.15 lbs
B-0520-MMSH 05 5/16" 7.9mm 20x1.5 12mm 25.3mm 22mm 0.18 lbs
B-0620-MMSH 06 3/8" 9.5mm 20x1.5 12mm 25.3mm 22mm 0.19 lbs
B-0622-MMSH 06 3/8" 9.5mm 22x1.5 14mm 27.3mm 22mm 0.21 lbs
B-0824-MMSH 08 1/2" 12.7mm 24x1.5 16mm 29.1mm 24mm 0.27 lbs
B-1030-MMSH 10 5/8" 15.9mm 30x2.0 20mm 33.1mm 32mm 0.41 lbs
B-1230-MMSH 12 3/4" 19.0mm 30x2.0 20mm 37.6mm 36mm 0.49 lbs
B-1236-MMSH 12 3/4" 19.0mm 36x2.0 25mm 33.6mm 32mm 0.60 lbs
B-1642-MMSH 16 1" 25.4mm 42x2.0 30mm 42.4mm 46mm 0.98 lbs
