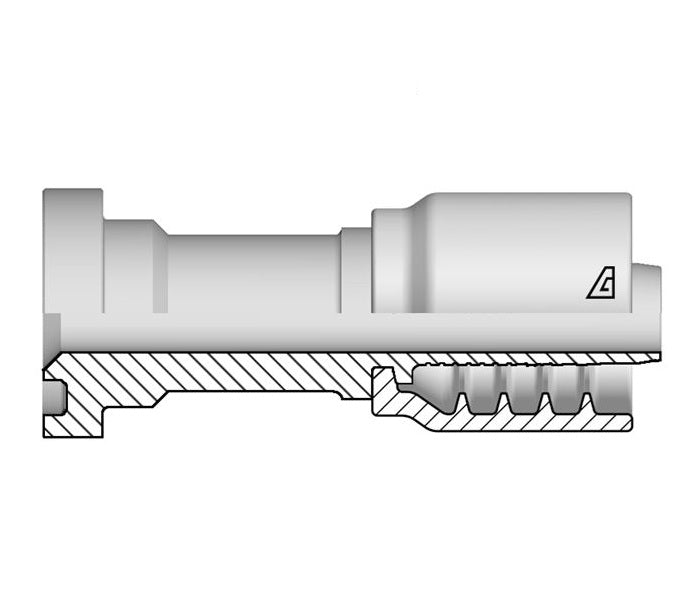

B-1616-C62S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -16 Hose ID x -16 Code 62 Flange | Steel

B-1616-C62S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -16 Hose ID x -16 Code 62 Flange | Steel

Save $17.82 Save $17.82
$62.37
$62.37 - $62.37
$62.37
$44.55
$44.55 - $44.55
$44.55

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 Flange
Specifications for Variant SKU: B-1616-C62S Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1in Code 62 Flange, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 6000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) lbs/each
B-0808-C62S 08 1/2" 12.7mm 08 1/2" 31.8mm 47.0mm 0.39 lbs
B-0812-C619 08 1/2" 12.7mm 12 3/4" 41.3mm 52.0mm 0.56 lbs
B-1212-C62S 12 3/4" 19.0mm 12 3/4" 41.3mm 52.5mm 0.69 lbs
B-1216-C62S 12 3/4" 19.0mm 16 1" 47.6mm 55.5mm 0.85 lbs
B-1612-C62S 16 1" 25.4mm 12 3/4" 41.3mm 56.4mm 0.89 lbs
B-1616-C62S 16 1" 25.4mm 16 1 47.6mm 56.4mm 1.03 lbs
B-1620-C62S 16 1" 25.4mm 20 1-1/4 54.0mm 63.4mm 1.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
