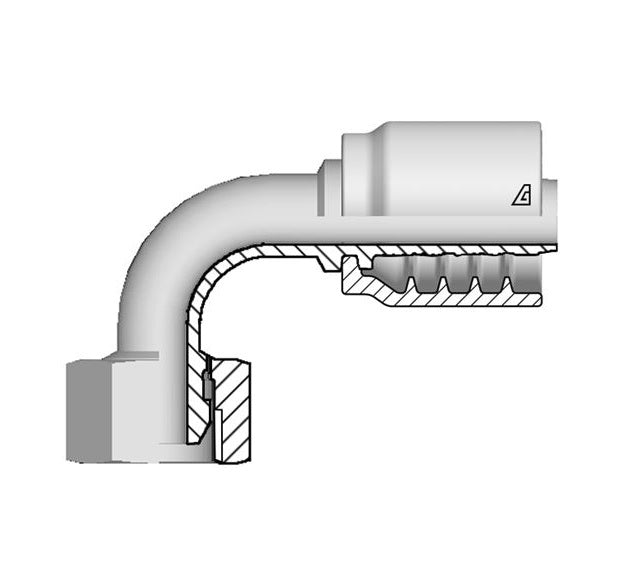

B-1616-FBO9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -16 Hose ID x -16 Female BSPP 60° Cone with O-Ring | Steel

B-1616-FBO9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -16 Hose ID x -16 Female BSPP 60° Cone with O-Ring | Steel

Save $15.25 Save $15.25
$53.37
$53.37 - $53.37
$53.37
$38.12
$38.12 - $38.12
$38.12

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Hose Barb x Female BSPP 60° Cone with O-Ring
Specifications for Variant SKU: B-1616-FBO9 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female BSPP
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH1 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FBO9 04 1/4" 6.4mm 04 1/4-19 29.3mm 29.0mm 19mm 0.17 lbs
B-0406-FBO9 04 1/4" 6.4mm 06 3/8-19 29.8mm 31.0mm 22mm 0.22 lbs
B-0506-FBO9 05 5/16" 7.9mm 06 3/8-19 33.2mm 36.0mm 22mm 0.25 lbs
B-0606-FBO9 06 3/8" 9.5mm 06 3/8-19 34.8mm 42.0mm 22mm 0.26 lbs
B-0608-FBO9 06 3/8" 9.5mm 08 1/2-14 34.3mm 35.5mm 27mm 0.32 lbs
B-0808-FBO9 08 1/2" 12.7mm 08 1/2-14 35.8mm 41.0mm 27mm 0.37 lbs
B-0810-FBO9 08 1/2" 12.7mm 10 5/8-14 42.5mm 44.0mm 27mm 0.40 lbs
B-0812-FBO9 08 1/2" 12.7mm 12 3/4-14 42.5mm 43.0mm 32mm 0.48 lbs
B-1010-FBO9 10 5/8" 15.9mm 10 5/8-14 47.9mm 47.0mm 27mm 0.47 lbs
B-1012-FBO9 10 5/8" 15.9mm 12 3/4-14 51.9mm 49.0mm 32mm 0.57 lbs
B-1212-FBO9 12 3/4" 19.0mm 12 3/4-14 53.5mm 53.0mm 32mm 0.66 lbs
B-1216-FBO9 12 3/4" 19.0mm 16 1-11 54.0mm 61.0mm 38mm 0.91 lbs
B-1616-FBO9 16 1" 25.4mm 16 1-11 75.1mm 69.0mm 38mm 1.16 lbs
B-1620-FBO9 16 1" 25.4mm 20 1-1/4-11 75.1mm 88.5mm 50mm 1.68 lbs
