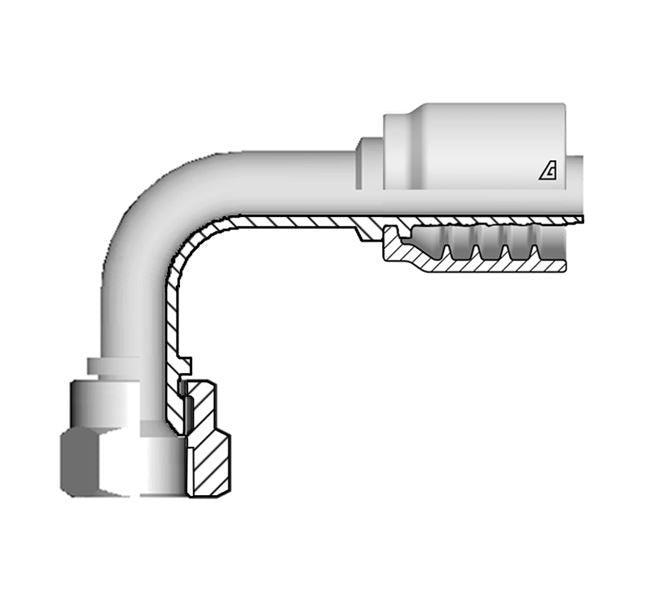

B-1616-FJ9M Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female JIC 37° | Steel

B-1616-FJ9M Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female JIC 37° | Steel

Save $14.91 Save $14.91
$52.19
$52.19 - $52.19
$52.19
$37.28
$37.28 - $37.28
$37.28

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: B-1616-FJ9M Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female JIC
Material(s): Steel
Special Properties: Medium Drop
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FJ9M 04 1/4" 6.4mm 04 7/16-20 34.2mm 32.0mm 16mm 0.16 lbs
B-0405-FJ9M 04 1/4" 6.4mm 05 1/2-20 25.7mm 30.0mm 17mm 0.16 lbs
B-0406-FJ9M 04 1/4" 6.4mm 06 9/16-18 28.5mm 38.0mm 19mm 0.17 lbs
B-0505-FJ9M 05 5/16" 7.9mm 05 1/2-20 34.2mm 32.0mm 17mm 0.19 lbs
B-0506-FJ9M 05 5/16" 7.9mm 06 9/16-18 33.2mm 35.0mm 19mm 0.22 lbs
B-0606-FJ9M 06 3/8" 9.5mm 06 9/16-18 31.3mm 35.0mm 19mm 0.22 lbs
B-0608-FJ9M 06 3/8" 9.5mm 08 3/4-16 39.5mm 41.0mm 25mm 0.30 lbs
B-0808-FJ9M 08 1/2" 12.7mm 08 3/4-16 37.2mm 40.0mm 25mm 0.35 lbs
B-0810-FJ9M 08 1/2" 12.7mm 10 7/8-14 43.3mm 47.0mm 27mm 0.40 lbs
B-0812-FJ9M 08 1/2" 12.7mm 12 1-1/16-12 42.8mm 58.0mm 32mm 0.49 lbs
B-1010-FJ9M 10 5/8" 15.9mm 10 7/8-14 49.4mm 48.0mm 27mm 0.51 lbs
B-1012-FJ9M 10 5/8" 15.9mm 12 1-1/16-12 47.9mm 58.0mm 32mm 0.60 lbs
B-1212-FJ9M 12 3/4" 19.0mm 12 1-1/16-12 52.4mm 54.0mm 32mm 0.70 lbs
B-1216-FJ9M 12 3/4" 19.0mm 16 1-5/16-12 52.6mm 72.0mm 38mm 0.86 lbs
B-1616-FJ9M 16 1" 25.4mm 16 1-5/16-12 72.6mm 71.5 38mm 1.19 lbs
B-1620-FJ9M 16 1" 25.4mm 20 1-5/8-12 72.6mm 78.0 50mm 1.21 lbs
