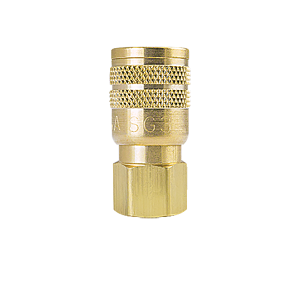

B-2CF3-B Breco by Foster | 1-Way Manual Sleeve Guard Sockets | C Series | 1/4" Socket x 3/8" Female NPT Thread | Straight | Brass

B-2CF3-B Breco by Foster | 1-Way Manual Sleeve Guard Sockets | C Series | 1/4" Socket x 3/8" Female NPT Thread | Straight | Brass

Save $5.37 Save $5.37
$13.42
$13.42 - $13.42
$13.42
$8.05
$8.05 - $8.05
$8.05

Foster Quick Disconnects - 1/4" 1-Way Manual Sleeve Guard Sockets - Breco
Specifications for Variant SKU: B-2CF3-B ZSi-Foster
Brand: Breco
Series: C Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High flow metal valves.
  • Precision molded seals form a "bubble tight" seal for reliable operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.
  • Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque.
  • Integral sleeve guard protects the sleeve and resists accidental disconnects for the "SG" series.
  • Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation.
  • Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
  • Accepts Industrial Interchange Plug.
  • Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug.
  • Working Pressure: 300 PSIG; vacuum to 26" Hg
  • Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-B
Specifications Body Size
1/4" 3/8" 1/2"
Rated Pressure (psi) 300 300 300
Temp. Range (Buna-N Seal) -40 deg. to +250 deg. F
Locking Device Stainless Steel Balls
Vacuum Data (inches Hg)
-- Disconnected (coupler only) Not Recommended
-- Connected 27.4 27.4 27.4
Approximate CFM at 100 (psi) 37 70 150
Female CouplerPart Number Brand Male PlugPart Number Size Description
B-2CF1-B Breco B-B2F1-S 1/8" Brass
SG2803 Foster 13-3 1/8" Brass
SG3003 Foster 11-3 1/4" Brass
B-2CF2-B Breco B-B2F2-B B-B2F2-S 1/4" Brass
SG3003LV Foster - 1/4" Brass, less Valve
B-2CF2-SS Breco B-B2F2-SS 1/4" Stainless Steel
SG3203 Foster 15-3 3/8" Brass
B-2CF3-B Breco B-B2F3-S 3/8" Brass

Sockets with modified valves are recommended for use with valve core plugs.
