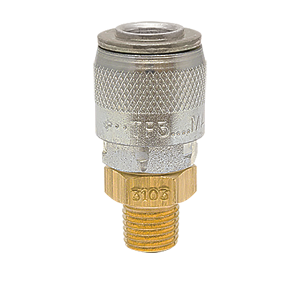

B-2JM2-B Breco by Foster | Quick Disconnect | J Series | 1/4" Automatic Socket | 1/4" Male NPT Thread | Straight | Brass

B-2JM2-B Breco by Foster | Quick Disconnect | J Series | 1/4" Automatic Socket | 1/4" Male NPT Thread | Straight | Brass

Save $7.39 Save $7.39
$22.11
$22.11 - $22.11
$22.11
$14.72
$14.72 - $14.72
$14.72

Foster Quick Disconnects - TF & J Series 1/4" Automatic Sockets - Breco
Specifications for Variant SKU: B-2JM2-B ZSi-Foster
Brand: Breco
Series: J Series
Shape (Orientation): Straight
Material(s): Brass
Interchange:
  • Interchange with Tru-Flate
  • TF Series Couplers (pneumatic) up to 300 psi connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a wide range of sizes and materials for use in a variety of applications with air or fluid.
Features:
  • Developed for the automotive industry
  • High flow valves with minimal pressure drop
  • Integral Sleeve guard helps prevent accidental disconnect
  • Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Operation: Manual - Automatic Push to Connect;
  • Size: Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
Applications
  • Air compressors, Pneumatic Tools
  • Grease guns, Paint applicators
Female CouplerPart Number Brand Male PlugPart Number MPT Size Description
TF2903 Foster TF12 1/8" Brass/Steel
B-2JM2-B Breco B-J2M2-B B-J2M2-S 1/4" Brass
TF3103 Foster TF10 1/4" Brass/Steel
SGTF3103 Foster - 1/4" Brass w/Steel Valve w/Sleeve Guard
B-2JM3-B Breco B-J2M3-S 3/8" Brass
TF3303 Foster TF14 3/8" Brass/Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
