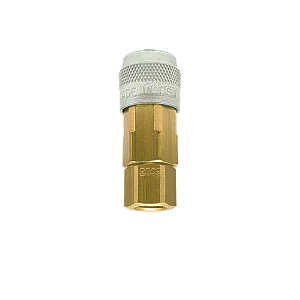

B-2LM2-B Breco by Foster | Quick Disconnect | L Series | Automatic | 1/4" Socket | 1/4" Male NPT Thread | Straight | Brass

Save $2.15

$19.31

$19.31 - $19.31

$19.31

$17.16

$17.16 - $17.16

$17.16

Foster Quick Disconnects - LN & L Series Automatic 1/4" Sockets - Breco

Quantity

Specifications for Variant SKU: B-2LM2-B ZSi-Foster
Brand:	Breco
Series:	L Series
Shape (Orientation):	Straight
Material(s):	Brass

Interchange:
Foster LN Series couplings are interchangeable with Lincoln's "Long Nose" series couplings and offer quick coupling of all air-operated equipment. They are only available in 1/4" body size, brass and steel construction.
Features:
Locking mechanism prevents accidental coupler detachment. Increased air flow due to a larger air passage. Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal. Corrosion resistant steel for long service life. Free swivel helps prevent kinking or curling of air hoses.
Specifications:
Type: One Way Shut-Off Rated Pressure: 300 PSIG Temperature Range (std seals): -40 deg. F to +250 deg. F. Locking Device: Balls or pins
Operation:
Manual - Socket sleeve must be retracted to connect and disconnect Automatic - Push to Connect

Female CouplerPart Number	Brand	Male PlugPart Number	Size	Description
LN2903	Foster	LN12	1/8"	Brass/Steel
LN3103	Foster	LN10	1/4"	Brass/Steel
B-2LM2-B	Foster	B-L2M2-S	1/4"	Brass
LN3303	Foster	-	3/8"	Brass/Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.

Shop Parts by ZSi Foster
