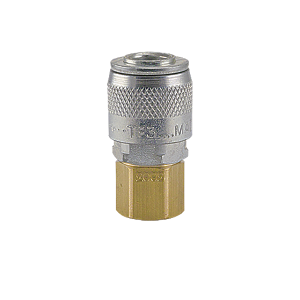

B-3JF3-S Breco by Foster | Quick Disconnect | J Series | 3/8" Automatic Socket | 3/8" Female NPT Thread | Straight | Steel

Save $8.29

$26.02

$26.02 - $26.02

$26.02

$17.73

$17.73 - $17.73

$17.73

Foster Quick Disconnects - TF & J Series 3/8" Automatic Sockets - Breco

Specifications for Variant SKU: B-3JF3-S ZSi-Foster
Brand:	Breco
Series:	J Series
Shape (Orientation):	Straight
Material(s):	Steel

Interchange:
Interchange with Tru-Flate TF Series Couplers (pneumatic) up to 300 psi connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a wide range of sizes and materials for use in a variety of applications with air or fluid.
Features:
Developed for the automotive industry High flow valves with minimal pressure drop Integral Sleeve guard helps prevent accidental disconnect Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
Specifications:
Type: One Way Shut-Off Rated Pressure: 300 PSIG Operation: Manual - Automatic Push to Connect; Size: Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
Applications
Air compressors, Pneumatic Tools Grease guns, Paint applicators

Female CouplerPart Number	Brand	Male PlugPart Number	FPT Size	Description
TF4004	Foster	TF41	1/4"	Brass/Steel
B-3JF2-S	Brenco	B-J3F2-S	1/4"	Steel
TF4204	Foster	TF43	3/8"	Brass/Steel
B-3JF3-S	Brenco	B-J3F3-S	3/8"	Steel
TF4404	Foster	-	1/2"	Brass/Steel
