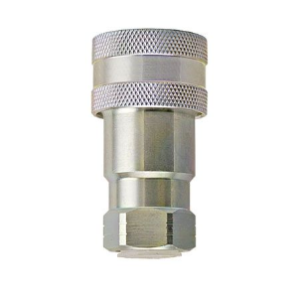

B-4050-2P Breco by Foster | 4000 Series | 1/8" Socket x 1/8" Female NPTF Thread | Poppet Style | Straight | Steel

Save $12.85

$32.13

$32.13 - $32.13

$32.13

$19.28

$19.28 - $19.28

$19.28

Foster Quick Disconnect - 4000 Series 1/8" Sockets - Breco

Specifications for Variant SKU: B-4050-2P ZSi-Foster
Brand:	Breco
Series:	4000 Series
Shape (Orientation):	Straight
Material(s):	Steel

4000 Series (Pioneer AG Interchange)

Features:

The "4000" Series is a proven design for use on construction equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Couplings feature steel ball check valves for dependability in heavy-duty hydraulic applications, within rated working pressures.
Socket and plug are precision machined from solid barstock. A ball-locking mechanism holds the mating halves together, and critical parts are induction hardened for durability.

Specifications:

Body Size	1/4"	3/8"	1/2"	3/4"	1"
Rated Pressure (Psig)	3000	3000	3000	3000	3000
Rated Flow (GPM)	3	6	12	28	50
Temperature Range (Std seals)	-40° to +250°F

Part Number Steel	Size	Thread Size NPTF	Thread Size ORB
B-4010-2	1/4"	1/4"-18	-
B-4010-3	3/8"	3/8"-18	-
B-8010-4	1/2"	1/2"-14	-
B-8010-5	3/4"	3/4"-14	-
B-8010-15	3/4"	-	3/4"-16
B-8010-16	1/2"	-	7/8"-14
B-4110-5	3/4"	3/4"-14	-
B-4010-6	1"	1-11 1/2"	-

Part Number Steel Poppet Style	Size	Thread Size NPTF
B-4010-2P	1/4"	1/4"-18
B-4010-3P	3/8"	3/8"-18
B-8010-4P	1/2"	1/2"-14
B-4010-6P	1"	1-11 1/2"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
