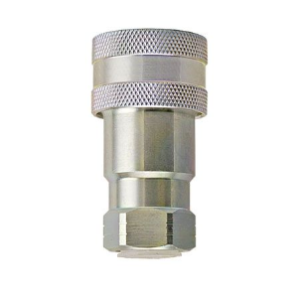

B-4050-4P Breco by Foster | 4000 Series | 1/2" Socket x 1/2" Female NPTF Thread | Poppet Style | Straight | Steel

Save $20.85

$52.13

$52.13 - $52.13

$52.13

$31.28

$31.28 - $31.28

$31.28

Foster Quick Disconnect - 4000 Series 1/2" Sockets - Breco

Specifications for Variant SKU: B-4050-4P ZSi-Foster
Brand:	Breco
Series:	4000 Series
Shape (Orientation):	Straight
Material(s):	Steel

4000 Series (Pioneer AG Interchange)

Features:

The "4000" Series is a proven design for use on construction equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Couplings feature steel ball check valves for dependability in heavy-duty hydraulic applications, within rated working pressures.
Socket and plug are precision machined from solid barstock. A ball-locking mechanism holds the mating halves together, and critical parts are induction hardened for durability.

Specifications:

Body Size	1/4"	3/8"	1/2"	3/4"	1"
Rated Pressure (Psig)	3000	3000	3000	3000	3000
Rated Flow (GPM)	3	6	12	28	50
Temperature Range (Std seals)	-40° to +250°F

Part Number Steel	Size	Thread Size NPTF	Thread Size ORB
B-4010-2	1/4"	1/4"-18	-
B-4010-3	3/8"	3/8"-18	-
B-8010-4	1/2"	1/2"-14	-
B-8010-5	3/4"	3/4"-14	-
B-8010-15	3/4"	-	3/4"-16
B-8010-16	1/2"	-	7/8"-14
B-4110-5	3/4"	3/4"-14	-
B-4010-6	1"	1-11 1/2"	-

Part Number Steel Poppet Style	Size	Thread Size NPTF
B-4010-2P	1/4"	1/4"-18
B-4010-3P	3/8"	3/8"-18
B-8010-4P	1/2"	1/2"-14
B-4010-6P	1"	1-11 1/2"
