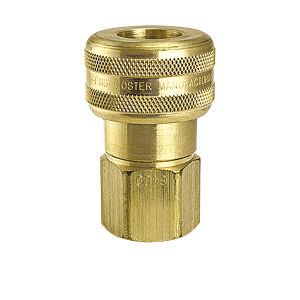

B-4BF4-B Breco by Foster | 1-Way Automatic Sockets | B Series | 1/2" Socket x 1/2" Female NPT Thread | Straight | Brass

B-4BF4-B Breco by Foster | 1-Way Automatic Sockets | B Series | 1/2" Socket x 1/2" Female NPT Thread | Straight | Brass

Save $2.62 Save $2.62
$23.56
$23.56 - $23.56
$23.56
$20.94
$20.94 - $20.94
$20.94

Foster Quick Disconnects - 3 & B Series 1/2" 1-Way Automatic Sockets - Breco
Specifications for Variant SKU: B-4BF4-B ZSi-Foster
Brand: Breco
Series: B Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High flow metal valves.
  • Precision molded seals form a "bubble tight" seal for reliable operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.
  • Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque.
  • Integral sleeve guard protects the sleeve and resists accidental disconnects for the "SG" series.
  • Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation.
  • Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
  • Accepts Industrial Interchange Plug.
  • Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug.
  • Working Pressure: 300 PSIG; vacuum to 26" Hg
  • Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-B
Specifications Body Size
1/4" 3/8" 1/2"
Rated Pressure (psi) 300 300 300
Temp. Range (Buna-N Seal) -40 deg. to +250 deg. F
Locking Device Stainless Steel Balls
Vacuum Data (inches Hg)
-- Disconnected (coupler only) Not Recommended
-- Connected 27.4 27.4 27.4
Approximate CFM at 100 (psi) 37 70 150
Female CouplerPart Number Brand Male PlugPart Number Size Description
FM4015 Foster - 1/4" Brass
B-4BF2-B Breco B-B4F3-S 1/4" Brass
SL4015 Foster - 1/4" Sleeve Lock, Brass
FM5005 Foster 53-5 3/8" Brass
SL5005 Foster - 3/8" Sleeve Lock, Brass
B-4BF3-B Breco - 3/8" Brass
FM5005H Foster - 3/8" For Heat, Viton Seal, Brass
FM5005S Foster - 3/8" For Steam, Brass/SS,EPDM Seal
FM5005W Foster - 3/8" For Water, Brass/SS, Buna-N Seal
FM5205 Foster 55-5 1/2" Brass
B-4BF4-B Breco B-B4F4-B 1/2" Brass
SL5205 Foster - 1/2" Sleeve Lock, Brass
FM5205H Foster - 1/2" For Heat, Viton Seal, Brass
FM5205LV Foster - 1/2" Less Valve, Brass
FM5205S Foster - 1/2" For Steam,Brass/SS, EPDM Seal
FM5205W Foster - 1/2" For Water,Brass/SS, Buna-N Seal
FM5405 Foster 57-5 3/4" Brass
B-4BF6-B Breco B-B4F6-S 3/4" Brass
SL5405 Foster - 3/4" Sleeve Lock, Brass
B-4BF6-B-SL Breco - 3/4" Brass with Sleeve Lock
FM5405W Foster - 3/4" For Water, Brass/SS, Buna-N Seal
[1] Swivel Plugs - Eliminates hose twist for applications such as blow guns, air tools, etc. [2] Ball check plugs eliminate hose whip at disconnect by checking the rapid flow of downstream exhaust air [3] Ball Lock (BL) - Locks manual socket against accidental disconnect. [4] Sleeve Lock (SL) - Locks automatic socket against accidental disconnect.
