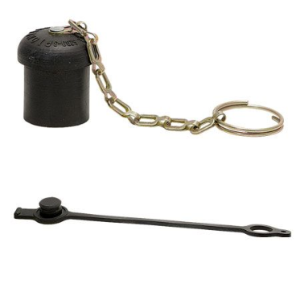

B-5209-5 Breco by Foster | 4000 Series | Dust Plugs & Dust Caps | 3/4" Cap | Rubber

B-5209-5 Breco by Foster | 4000 Series | Dust Plugs & Dust Caps | 3/4" Cap | Rubber

Save $13.94 Save $13.94
$34.85
$34.85 - $34.85
$34.85
$20.91
$20.91 - $20.91
$20.91

Foster Quick Disconnect - Dust Plugs & Dust Caps - Breco
Specifications for Variant SKU: B-5209-5 ZSi-Foster
Brand: Breco
Series: 4000 Series
Material(s): Rubber
4000 Series (Pioneer AG Interchange)
Features:
  • The "4000" Series is a proven design for use on construction equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
  • Couplings feature steel ball check valves for dependability in heavy-duty hydraulic applications, within rated working pressures.
  • Socket and plug are precision machined from solid barstock. A ball-locking mechanism holds the mating halves together, and critical parts are induction hardened for durability.
Specifications:
Body Size 1/4" 3/8" 1/2" 3/4" 1"
Rated Pressure (Psig) 3000 3000 3000 3000 3000
Rated Flow (GPM) 3 6 12 28 50
Temperature Range (Std seals) -40° to +250°F
Dust Plug Part No.
Rubber		 Dust Cap Part No.
Rubber		 Size
B-5205-2M - 1/4"
B-5205-3 - 3/8"
B-5205-4M B-5209-4M 1/2"
B-5205-5 B-5209-5 3/4"
B-5205-6 B-5209-6 1"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
