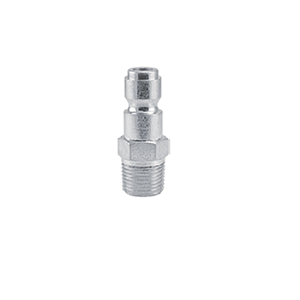

B-J2M1-S Breco by Foster | J Series | Quick Disconnect | 1/4" Tru-Flate Interchange Plug x 1/8" Male NPT Thread | Steel

B-J2M1-S Breco by Foster | J Series | Quick Disconnect | 1/4" Tru-Flate Interchange Plug x 1/8" Male NPT Thread | Steel

Save $3.66 Save $3.66
$6.18
$6.18 - $6.18
$6.18
$2.52
$2.52 - $2.52
$2.52

Foster Quick Disconnects - TF & J Series 1/4" Plugs - Breco
Specifications for Variant SKU: B-J2M1-S ZSi-Foster
Brand: Breco
Series: J Series
Shape (Orientation): Straight
Material(s): Steel
Interchange:
  • Interchange with Tru-Flate
  • TF Series Couplers (pneumatic) up to 300 psi connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a wide range of sizes and materials for use in a variety of applications with air or fluid.
Features:
  • Developed for the automotive industry
  • High flow valves with minimal pressure drop
  • Integral Sleeve guard helps prevent accidental disconnect
  • Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Operation: Manual - Automatic Push to Connect;
  • Size: Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
Applications
  • Air compressors, Pneumatic Tools
  • Grease guns, Paint applicators
Male PlugPart Number Brand Female CouplerPart Number MPT Size Description
TF12 Foster TF2903 1/8" Steel
B-J2M2-B Breco - 1/8" Steel
TF10 Foster TF3103 1/4" Steel
B-J2M2-S Breco - 1/4" Steel
TF14 Foster TF3303 3/8" Steel
B-J2M3-S Breco B-2JM3-B 3/8" Steel
