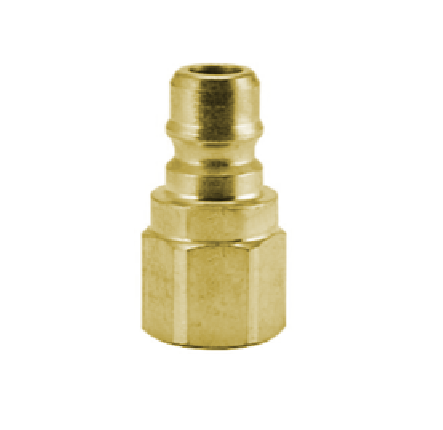

B-PHN6-6F-B Breco by Foster | FIH Series | Quick Disconnect w/ Unvalved Plug | 3/8" Plug x 3/8" Female NPT Thread | Brass

B-PHN6-6F-B Breco by Foster | FIH Series | Quick Disconnect w/ Unvalved Plug | 3/8" Plug x 3/8" Female NPT Thread | Brass

Save $5.20 Save $5.20
$9.18
$9.18 - $9.18
$9.18
$3.98
$3.98 - $3.98
$3.98

Foster Quick Disconnects - FIH Series, Unvalved Plugs (Use with both FH Straight Thru & FIH Sockets) - Breco
Specifications for Variant SKU: B-PHN6-6F-B ZSi-Foster
Brand: Breco
Series: H Series
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • FH & FIH Series Quick Disconnect has provided years of reliable service on hydraulic/pneumatic applications in the handling of gases and fluids. The FH & FIH Series couplings are engineered to meet or exceeds MIL-C-51234. Options are available for static pressure hydraulic systems and also for pneumatic air tool use.
  • The FIH Series sockets & plugs are for pneumatic applications. The FIH sockets have a valve with 360 deg. contact with plug.
Interchange:
  • FH Series interchanges with Snap-Tite "H" Series.
  • FIH Series interchanges with Snap-Tite "IH" Series.
  • Within each series, only sockets and plugs of the same size will couple together.
Features:
  • Type:
    • FH - Two Way Shut-Off and Straight-Thru
    • FIH - One Way Shut-Off
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Rated Pressure: Rated Pressure as defined by ANSI/B93.2-1986, non-shock service.
  • Plug Features:
    • Machined from solid bar stock
    • Steel plugs are hardened and zinc plated to provide heavy duty performance
    • Flow - Large diameters provide for higher flow than other double shut-off quick disconnects
  • Seals
    • Buna-N (Nitrile) seals are standard
    • Valve seals are crimped in place to maintain integrity during excessive flow conditions
Body Size FH Series, Two Way FH, Straight Thru FIH Series, One Way
Steel PSIG Brass PSIG Steel PSIG Brass PSIG Steel PSIG
1/4" 3250 2000 3000 3000 3000
3/8" 2250 1200 4000 3500 2250
1/2" 1800 1200 4000 2500 2000
Male PlugPart Number Female CouplerPart Number Snap-Tite No. (Breco) FPT Thread Description
FH21F - - 1/8" Steel
FH22F FIS2F2 FHS2 FHS2B B-PHN4-4F 1/4" Steel
FH22FB FIS2F2 FHS2 FHS2B B-PHN4-4F-B 1/4" Brass
FH33F FIS3F3 FHS3 FHS3B - 3/8" Steel
FH33FB FIS3F3 FHS3 FHS3B B-PHN6-6F-B 3/8" Brass
FH44F FIS4F4 FHS4 FHS4B B-PHN8-8F 1/2" Steel
FH44FB FIS4F4 FHS4 FHS4B - 1/2" Brass

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
