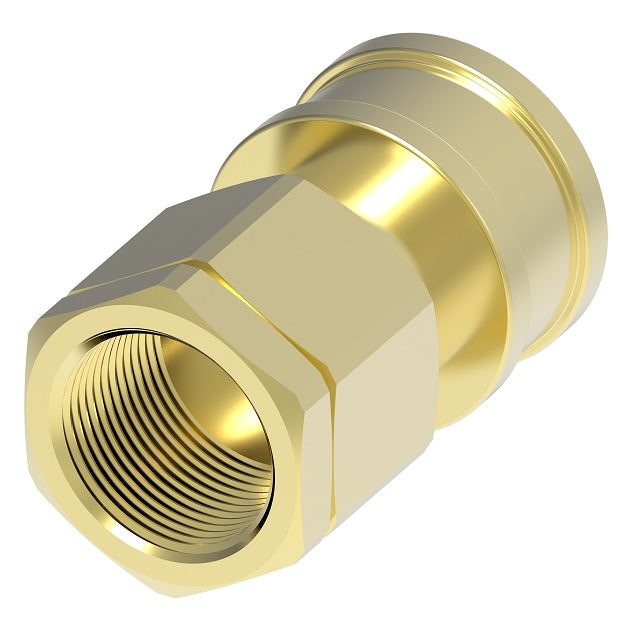

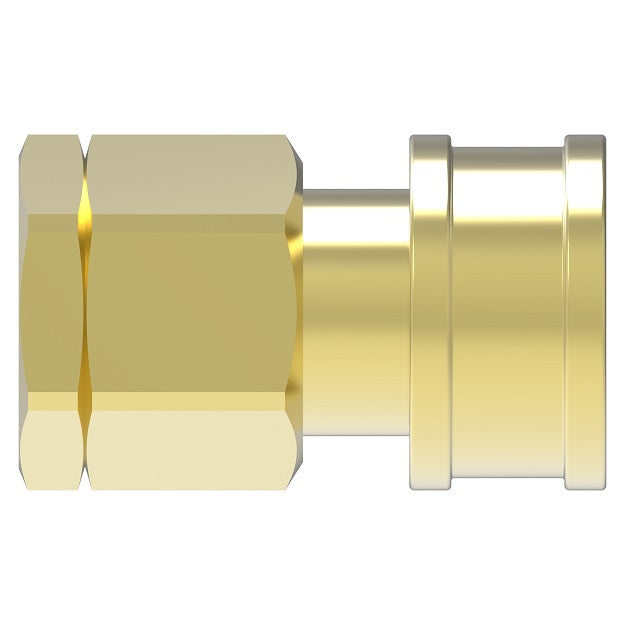

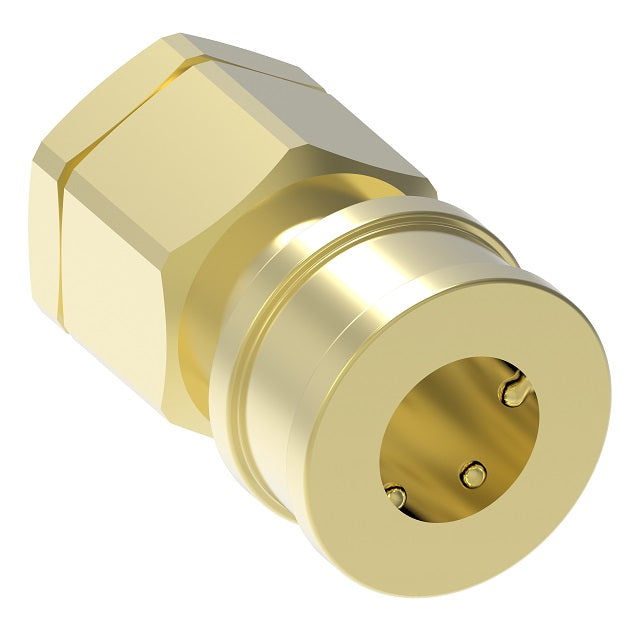

B12H46 Hansen® by Danfoss | Quick Disconnect Coupling | HK10/12/20 Series | 1-1/2" Female NPTF x 1-1/2" ISO 7241-1 B | Socket | NBR Seal | Brass

$0.00 - $0.00

$0.00

$503.99

$503.99 - $503.99

$503.99

Hansen® by Danfoss
HK Series | ISO 7241-1 B Interchange

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen HK brass is a general purpose industrial interchange coupling offered in brass for excelllent corrosion resistance in rugged applications where stainless steel is unacceptable.

The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B12H46 Danfoss
Brand:	Hansen
Series:	HK10/12/20 Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPTF, 1-1/2in ISO-B QD Interchange
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-sealing poppet valves provide excellent high and low pressure sealing
Applications & Markets:	Agriculture Hydraulic Tool General Industry Construction Fluid Transfer Chemical Oil and Gas Transportation Food and Beverage Trucks Nuclear
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series B.
Materials:	Standard seal material: Nitrile (NBR) (40°F to +250°F \| -40°C to +121°C) Brass construction with stainless steel springs for greater corrosion resistance and fluid compatibility
European Pressure Equipment Directive:	Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with stipulations of Module A of the European Pressure Equipment Directive 2014/68/EU. They should not be used to convey unstable gases.

Group 1 = Hazardous media / Group 2 = Other media

Series	Body Size	ISO Size	Nominal Flow Diameter	Max. Operating Pressure				Rated Flow*		Air Inclusion	Fluid Loss
	Body Size	ISO Size	Nominal Flow Diameter	Non Hazardous Liquids & Gases (Group 2)		Hazardous Liquids & Gases (Group 1)				Air Inclusion	Fluid Loss
	in.	mm	mm	bar	psi	bar	psi	lpm	gpm	cc.max.	cc.max.
1HK	1/8"	5mm	4.4mm	207 bar	3,000 psi	207 bar	3,000 psi	3 lpm	0.8 gpm	0.6 cc.max.	0.5 cc.max.
2HK	1/4"	6.3mm	5.9mm	186 bar	2,700 psi	186 bar	2,700 psi	12 lpm	3 gpm	1.2 cc.max.	0.9 cc.max.
3HK	3/8"	10mm	7.8mm	152 bar	2,200 psi	152 bar	2,200 psi	23 lpm	6 gpm	2.9 cc.max.	2.1 cc.max.
4HK	1/2"	12.5mm	10mm	155 bar	2,250 psi	155 bar	2,250 psi	45 lpm	12 gpm	3.6 cc.max.	3.5 cc.max.
6HK	3/4"	20mm	17mm	138 bar	2,000 psi	138 bar	2,000 psi	100 lpm	26 gpm	11.5 cc.max.	9.3 cc.max.
8HK	1"	25mm	19.6mm	103 bar	1,500 psi	103 bar	1,500 psi	189 lpm	50 gpm	18.0 cc.max.	16.9 cc.max.
10HK	1-1/4"**	-	26.7mm	83 bar	1,200 psi	37 bar	537 psi	288 lpm	76 gpm	48.0 cc.max.	48.0 cc.max.
12HK	1-1/2"	40mm	35.1mm	104bar	1,500 psi	29 bar	421 psi	375 lpm	99 gpm	91.3 cc.max.	91.3 cc.max.
20HK	2-1/2"	50mm	46mm	49bar	700 psi	21 bar	305 psi	757 lpm	200 gpm	209.9 cc.max.	209.9 cc.max.

For questions related to vacuum please contact Danfoss.
** No ISO Standard available for the 10HK


Socket/Female (Figure 1)						Plugs (Male) (Figure 2)
HK1-8 Series
Part Number	Body Size	ISO Size	Type	Female Thread	Figure	Dimensions
NBR Seal	Body Size	ISO Size	Type	Female Thread	Figure	A	B	Across Flats	C	D	E	Hex
B1H11	1/8"	5mm	Socket/Female	1/8-27 Fem. NPTF	1	1.91" (48.5mm)	0.98" (24.9mm)	0.56" (14.2mm)	-	-	-	-
B1K11	1/8"	5mm	Plug/Male	1/8-27 Fem. NPTF	2	-	-	-	1.26" (32.0mm)	0.65" (16.5mm)	0.44" (11.2mm)	0.56" (14.2mm)

B2H16	1/4"	6.3mm	Socket/Female	1/4-18 Fem. NPTF	1	2.26" (57.4mm)	1.14" (29.0mm)	0.75" (19.1mm)	-	-	-	-
B2K16	1/4"	6.3mm	Plug/Male	1/4-18 Fem. NPTF	2	-	-	-	1.52" (38.6mm)	0.87" (22.1mm)	0.56" (14.2mm)	0.75" (19.1mm)

B2H16BS	1/4"	6.3mm	Socket/Female	1/4-19 Fem. BSPP	1	2.31" (58.7mm)	1.14" (29.0mm)	0.75" (19.1mm)	-	-	-	-
B2K16BS	1/4"	6.3mm	Plug/Male	1/4-19 Fem. BSPP	2	-	-	-	1.52" (38.6mm)	0.87" (22.1mm)	0.56" (14.2mm)	0.75" (19.1mm)

B3H21	3/8"	10mm	Socket/Female	3/8-19 Fem. NPTF	1	2.56" (65.0mm)	1.42" (36.1mm)	0.88" (22.4mm)	-	-	-	-
B3K21	3/8"	10mm	Plug/Male	3/8-18 Fem. NPTF	2	-	-	-	1.76" (44.7mm)	1.01" (25.7mm)	0.61" (15.5mm)	0.88" (22.4mm)

B3H21BS	3/8"	10mm	Socket/Female	3/8-19 Fem. BSPP	1	2.56" (65.0mm)	1.42" (36.1mm)	0.88" (22.4mm)	-	-	-	-
B3K21BS	3/8"	10mm	Plug/Male	3/8-19 Fem. BSPP	2	-	-	-	1.76" (44.7mm)	1.01" (25.7mm)	0.61" (15.5mm)	0.88" (22.4mm)

B4HP26	1/2"	12.5mm	Socket/Female	1/2-14 Fem. NPTF	1	2.96" (75.2mm)	1.86" (47.2mm)	1.13" (28.7mm)	-	-	-	-
B4KP26	1/2"	12.5mm	Plug/Male	1/2-14 Fem. NPTF	2	-	-	-	2.03" (51.6mm)	1.30" (33.0mm)	0.76" (19.3mm)	1.13" (28.7mm)

B4HP26BS	1/2"	12.5mm	Socket/Female	1/2-14 Fem. BSPP	1	2.96" (75.2mm)	1.86" (47.2mm)	1.13" (28.7mm)	-	-	-	-
B4KP26BS	1/2"	12.5mm	Plug/Male	1/2-14 Fem. BSPP	2	-	-	-	2.03" (51.6mm)	1.30" (33.0mm)	0.76" (19.3mm)	1.13" (28.7mm)

B6HP31	3/4"	20mm	Socket/Female	3/4-14 Fem. NPTF	1	3.48" (88.4mm)	2.22" (56.4mm)	1.31" (33.3mm)	-	-	-	-
B6KP31	3/4"	20mm	Plug/Male	3/4-14 Fem. NPTF	2	-	-	-	2.36" (59.9mm)	1.52" (38.6mm)	0.71" (18.0mm)	1.31" (33.3mm)

B6HP31BS	3/4"	20mm	Socket/Female	3/4-14 Fem. BSPP	1	3.48" (88.4mm)	2.22" (56.4mm)	1.31" (33.3mm)	-	-	-	-
B6KP31BS	3/4"	20mm	Plug/Male	3/4-14 Fem. BSPP	2	-	-	-	2.36" (59.9mm)	1.52" (38.6mm)	0.71" (18.0mm)	1.31" (33.3mm)

B8HP36	1"	25mm	Socket/Female	1-11-1/2 Fem. NPTF	1	4.13" (104.9mm)	2.61" (66.3mm)	1.75" (44.5mm)	-	-	-	-
B8KP36	1"	25mm	Plug/Male	1-11-1/2 Fem. NPTF	2	-	-	-	2.85" (72.4mm)	1.88" (47.8mm)	0.97" (24.6mm)	1.63" (41.4mm)

B8HP36BS	1"	25mm	Socket/Female	1-11 Fem. BSPP	1	4.13" (104.9mm)	2.61" (66.3mm)	1.75" (44.5mm)	-	-	-	-
B8KP36BS	1"	25mm	Plug/Male	1-11 Fem. BSPP	2	-	-	-	2.85" (72.4mm)	1.88" (47.8mm)	0.97" (24.6mm)	1.63" (41.4mm)
HK10/12/20 Series

Socket/Female (Figure 3)						Plugs (Male) (Figure 4)
Part Number	Body Size	ISO Size	Type	Female Thread	Figure	Dimensions
NBR Seal	Body Size	ISO Size	Type	Female Thread	Figure	A	B	Hex	C	D	E	Hex
B10H41	1-1/4"	-	Socket/Female	1-1/2-11-1/2 Fem. NPTF	3	4.51" (114.6mm)	2.73" (69.3mm)	2.38" (60.5mm)	-	-	-	-
B10K41*	1-1/4"	-	Plug/Male	1-1/4-11-1/2 Fem. NPTF	4	-	-	-	4.25" (108.0mm)	2.74" (69.6mm)	2.33" (59.2mm)	2.38" (60.5mm)

B12H41	1-1/2"	40mm	Socket/Female	1-1/4-11-1/2 Fem. NPTF	3	4.82" (122.4mm)	3.23" (82.0mm)	2.38" (60.5mm)	-	-	-	-
B12K41	1-1/2"	40mm	Plug/Male	1-1/4-11-1/2 Fem. NPTF	4	-	-	-	4.76" (120.9mm)	2.74" (69.6mm)	2.67" (67.8mm)	2.38" (60.5mm)

B12H46	1-1/2"	40mm	Socket/Female	1-1/2-11 Fem. NPTF	3	4.82" (122.4mm)	3.23" (82.0mm)	2.38" (60.5mm)	-	-	-	-
B12K46	1-1/2"	40mm	Plug/Male	1-1/2-11-1/2 Fem. NPTF	4	-	-	-	4.76" (120.9mm)	2.74" (69.6mm)	2.67" (67.8mm)	2.38" (60.5mm)

B12H46BS	1-1/2"	40mm	Socket/Female	1-1/2-11 Fem. BSPP	3	4.82" (122.4mm)	3.23" (82.0mm)	2.38" (60.5mm)	-	-	-	-
B12K46BS	1-1/2"	40mm	Plug/Male	1-1/2-11 Fem. BSPP	4	-	-	-	4.76" (120.9mm)	2.74" (69.6mm)	2.67" (67.8mm)	2.38" (60.5mm)

B20H51	2-1/2"	50mm	Socket/Female	2-11-1/2 Fem. NPTF	3	5.55" (141.0mm)	4.11" (104.4mm)	3.75" (95.3mm)	-	-	-	-
B20K51	2-1/2"	50mm	Plug/Male	2-11-1/2 Fem. NPTF	4	-	-	-	5.49" (139.4mm)	4.33" (110.0mm)	2.97" (75.4mm)	3.75" (95.3mm)

B20H56	2-1/2"	50mm	Socket/Female	2-1/2-8 Fem. NPTF	3	6.14" (156.0mm)	4.11" (104.4mm)	3.75" (95.3mm)	-	-	-	-
B20K56	2-1/2"	50mm	Plug/Male	2-1/2-8 Fem. NPTF	4	-	-	-	6.08" (154.4mm)	4.33" (110.0mm)	3.56" (90.4mm)	3.75" (95.3mm)

B20H61	2-1/2"	50mm	Socket/Female	3-8 Fem. NPTF	3	7.00" (177.8mm)	4.11" (104.4mm)	4.00" (101.6mm)	-	-	-	-
B20K61	2-1/2"	50mm	Plug/Male	3-8 Fem. NPTF	4	-	-	-	6.94" (176.3mm)	4.62" (117.3mm)	4.42" (112.3mm)	4.00" (101.6mm)

* ISO 7241-1 Series B does not include 1-1/4 inch body size couplings; therefore, Series 10HK is not covered by this standard
A=Overall Length, B=Maximum Diameter
C=Overall Length, D=Maximum Diameter, E=Exposed Length when Connected
To obtain connected length of coupling, add dimensions A (Fig. 1) and E (Fig. 2) together.
To obtain connected length of coupling, add dimensions A (Fig. 3) and E (Fig. 4) together.
