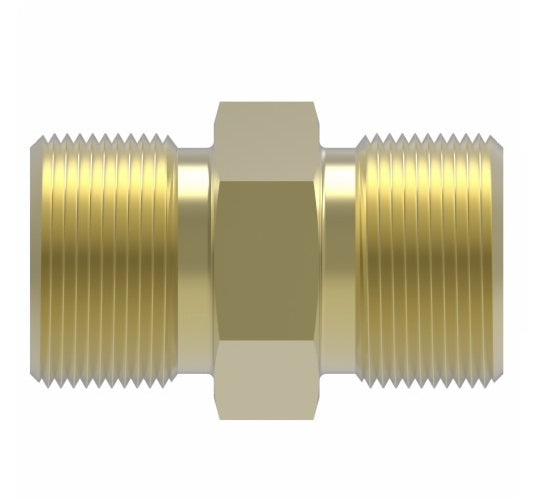

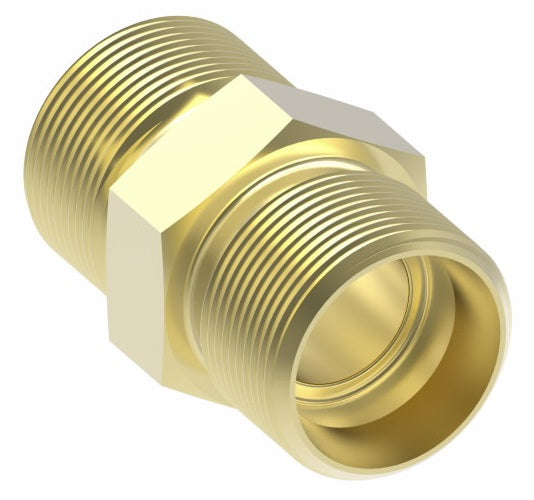

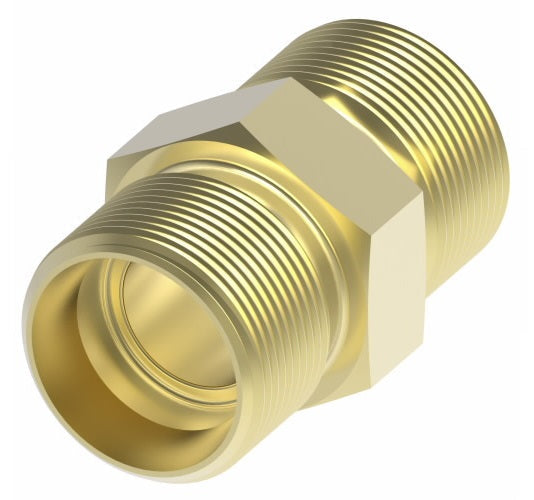

B1362X12 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 3/4" Tube OD x 3/4" Tube OD | Brass
B1362X12 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 3/4" Tube OD x 3/4" Tube OD | Brass
B1362X12 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 3/4" Tube OD x 3/4" Tube OD | Brass
B1362X12 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 3/4" Tube OD x 3/4" Tube OD | Brass

B1362X12 by Danfoss | Air Brake Adapter for Copper Tubing | Union (Body Only) | 3/4" Tube OD x 3/4" Tube OD | Brass

$40.32 - $40.32
$40.32
$40.32 - $40.32
$40.32

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Union
Specifications for Variant SKU: B1362X12 Danfoss
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120101BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
Body Only
Part Number 		Tube O.D. Hex
C		 D L
1362X4 B1362X4 1/4" 7/16" 0.188" 0.85"
1362X6 B1362X6 3/8" 9/16" 0.312" 1.10"
1362X8 B1362X8 1/2" 11/16" 0.406" 1.31"
1362X10 B1362X10 5/8" 13/16" 0.531" 1.43"
1362X12 B1362X12 3/4" 1" 0.656" 1.60"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
