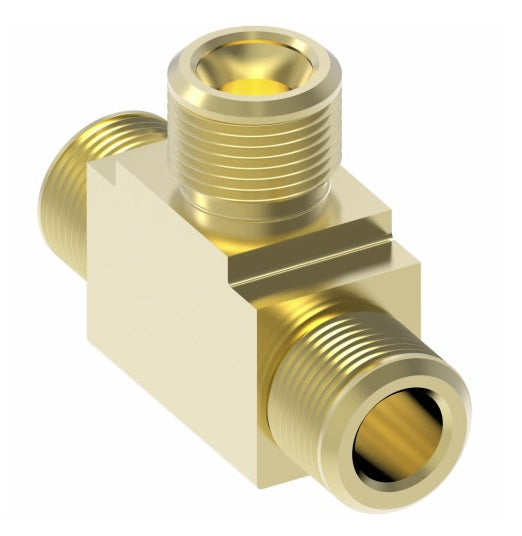

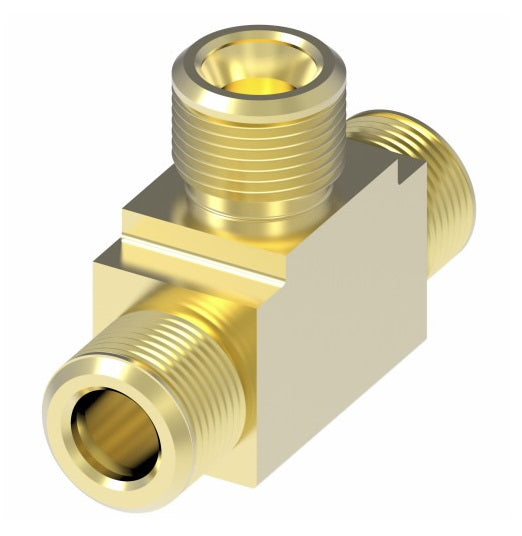

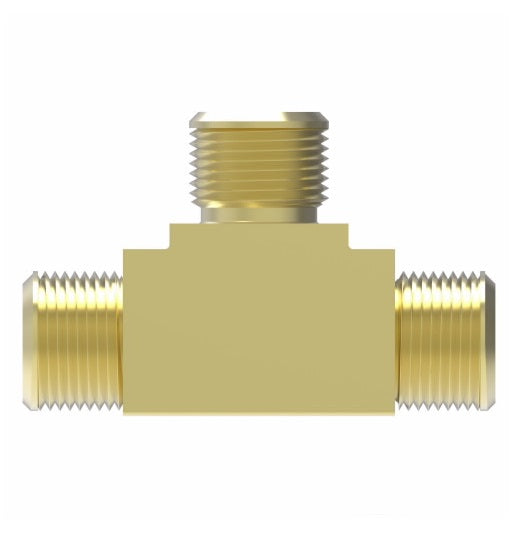

B1364X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass
B1364X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass
B1364X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass
B1364X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass

B1364X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass

$17.63 - $17.63
$17.63
$17.63 - $17.63
$17.63

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Union Tee
Specifications for Variant SKU: B1364X6 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120401BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
Body Only
Part Number 		Tube O.D. M M1 D D1
1364X6 B1364X6 3/8" 0.80" 0.80" 0.314" 0.314"
1364X8 B1364X8 1/2" 0.94" 0.94" 0.406" 0.406"
