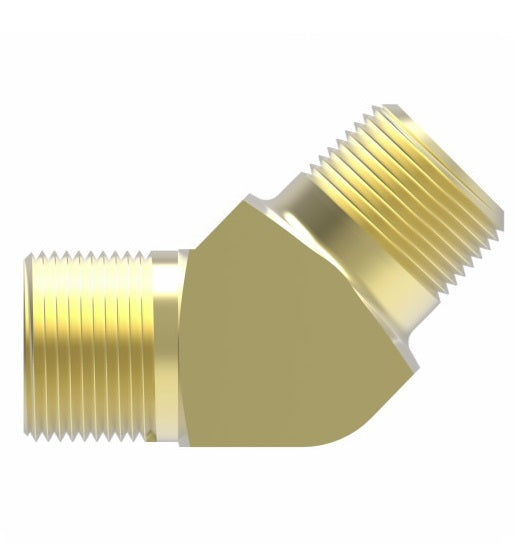

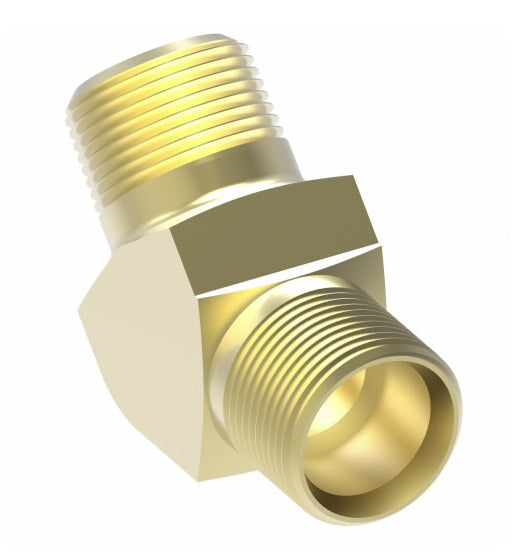

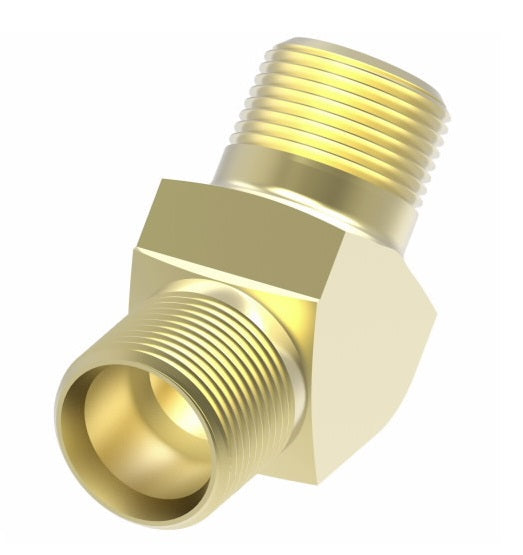

B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass

B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass

Name: B1380X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow (Body Only) | 3/8" Tube OD x 1/4" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: B1380X6 Danfoss
Price: 9.98 USD
Availability: InStock

$9.98 - $9.98

$9.98

$9.98 - $9.98

$9.98

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector

Specifications for Variant SKU: B1380X6 Danfoss
Shape (Orientation):	45 Degree
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120302BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Male Pipe Thread	D	D1	M	N
1380X6	B1380X6	3/8"	1/4"	0.312"	0.312"	0.72"	0.86"
1380X6X6	-	3/8"	3/8"	0.312"	0.406"	0.76"	0.95"
1380X8	-	1/2"	3/8"	0.409"	0.406"	0.85"	0.95"
1380X10	B1380X10	5/8"	1/2"	0.534"	0.531"	0.95"	1.17"
