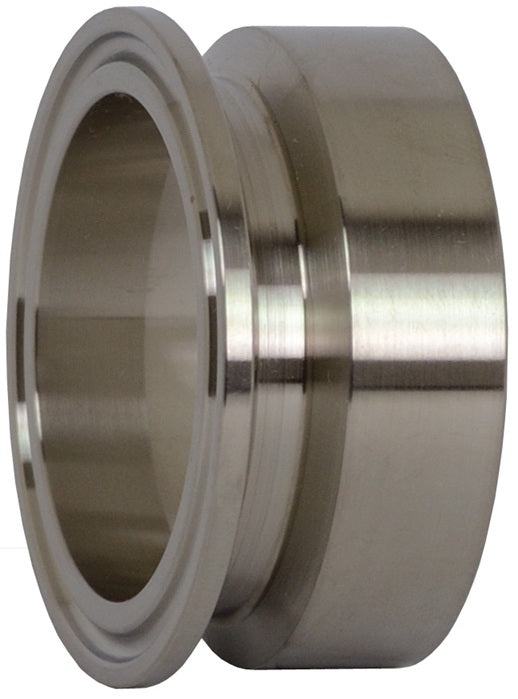

B19MPX-R250 Dixon Valve 316L Stainless Steel 2-1/2" Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter

B19MPX-R250 Dixon Valve 316L Stainless Steel 2-1/2" Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter

Save $3.58 Save $3.58
$34.58
$34.58 - $34.58
$34.58
$31.00
$31.00 - $31.00
$31.00

Dixon Sanitary Fittings
Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B19MPX-R250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Weld End
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Wall Thickness Dimensions

 Weight (Lbs.)
A B C
B19MPX-R50 1/2" - - - - 0.5000
B19MPX-R75 3/4" - - - - 0.5000
B19MPX-R100 1" 0.109" 1.320" 1.100" 0.870" 2.0000
B19MPX-R150 1-1/2" 0.109" 1.900" 1.680" 1.370" 0.3000
B19MPX-R200 2" 0.109" 2.380" 2.160" 1.870" 0.3600
B19MPX-R250 2-1/2" 0.120" 2.880" 2.640" 2.370" 0.4500
B19MPX-R300 3" 0.120" 3.500" 3.260" 2.870" 0.6500
B19MPX-R400 4" 0.120" 4.500" 4.260" 3.830" 3.1000
B19MPX-R600 6" - - - - -
