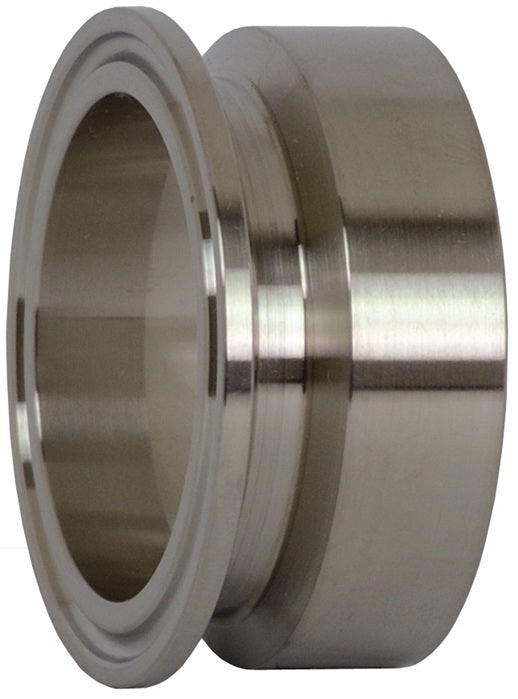

B19MPX-R50 Dixon Valve 316L Stainless Steel 1/2" Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter

B19MPX-R50 Dixon Valve 316L Stainless Steel 1/2" Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
Sanitary Clamp x Schedule 10S Pipe Size Weld Adapter - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B19MPX-R50 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Wall Thickness Dimensions

 Weight (Lbs.)
A B C
B19MPX-R50 1/2" - - - - 0.5000
B19MPX-R75 3/4" - - - - 0.5000
B19MPX-R100 1" 0.109" 1.320" 1.100" 0.870" 2.0000
B19MPX-R150 1-1/2" 0.109" 1.900" 1.680" 1.370" 0.3000
B19MPX-R200 2" 0.109" 2.380" 2.160" 1.870" 0.3600
B19MPX-R250 2-1/2" 0.120" 2.880" 2.640" 2.370" 0.4500
B19MPX-R300 3" 0.120" 3.500" 3.260" 2.870" 0.6500
B19MPX-R400 4" 0.120" 4.500" 4.260" 3.830" 3.1000
B19MPX-R600 6" - - - - -
