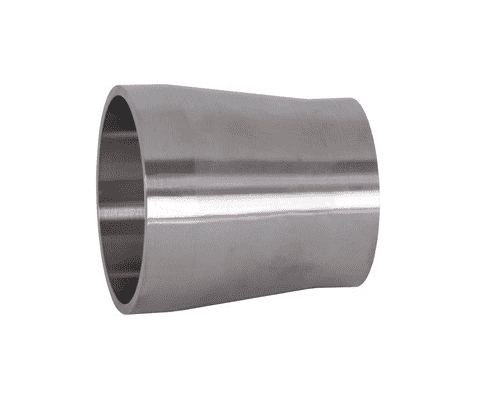

B19WV-R300 Dixon 316L Stainless Steel Sanitary Tube OD Weld x Schedule 5S Weld Pipe Size Adapter - 3" Pipe Size

B19WV-R300 Dixon Valve 316L Stainless Steel Sanitary Tube OD Weld x Schedule 5S Weld Pipe Size Adapter - 3" Pipe Size

$77.52 - $77.52
$77.52
$81.35
$81.35 - $81.35
$81.35

Dixon Sanitary Fittings Sanitary Pipe Size Adapter - Tube OD Weld x Schedule 5S Weld Adapter - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B19WV-R300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions
Tube Wall
Thickness		 Pipe Wall
Thickness		 Weight
(Lbs.)
A
B19WV-R100 1" 2.000" .065" .065" 0.0010
B19WV-R150 1-1/2" 2.500" .065" .065" 0.1510
B19WV-R200 2" 2.500" .065" .065" 0.3220
B19WV-R250 2-1/2" 2.500" .065" .084" 2.0000
B19WV-R300 3" 2.500" .065" .084" 0.6500
B19WV-R400 4" 3.000" .084" .084" 1.4200
