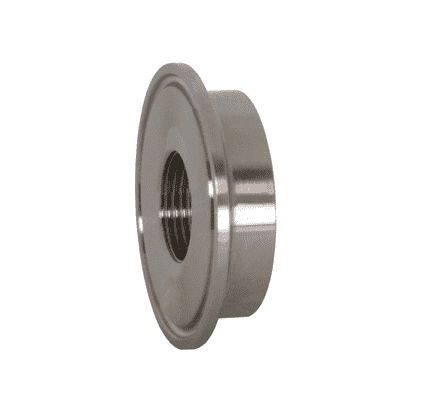

B23BMP-G200 Dixon Valve 304 Stainless Steel Sanitary Thermometer Cap - 2" Tube OD - 3/4" NPT Tap Size

Name: B23BMP-G200 Dixon Valve 304 Stainless Steel Sanitary Thermometer Cap - 2" Tube OD - 3/4" NPT Tap Size
Brand: Dixon
SKU: B23BMP-G200 Dixon
Price: 14.45 USD
Availability: InStock

Save $1.81

$16.26

$16.26 - $16.26

$16.26

$14.45

$14.45 - $14.45

$14.45

Dixon Sanitary Fittings Sanitary Clamp Fitting Cap - Thermometer Cap

Quantity

Specifications for Variant SKU: B23BMP-G200 Dixon
Ends Configuration:	2in Sanitary Clamp End, 3/4in Female NPT
Material(s):	304 Stainless Steel

Material:
304 Stainless Steel

Part Number	Tube OD	Tap Size	Dimensions				Weight(Lbs.)
Part Number	Tube OD	Tap Size	A	B	C	D	Weight(Lbs.)
B23BMP-G100	1"	1/2" NPT	1.99"	1.50"	0.63"	1/2"	0.2800
B23BMP-G10025	1"	1/4" NPT	-	-	-	1/4"	0.1000
B23BMP-G10075	1"	3/4" NPT	-	-	-	3/4"	-
B23BMP-G150	1-1/2"	3/4" NPT	1.99"	1.50"	0.63"	3/4"	0.2300
B23BMP-G15025	1-1/2"	1/4" NPT	-	-	-	1/4"	0.3900
B23BMP-G150375	1-1/2"	3/8" NPT	-	-	-	3/4"	0.1000
B23BMP-G15050	1-1/2"	1/2" NPT	-	-	-	1/2"	-
B23BMP-G200	2"	3/4" NPT	2.52"	2.00"	0.63"	3/4"	0.5000
B23BMP-G20025	2"	1/4" NPT	-	-	-	1/4"	0.7210
B23BMP-G200375	2"	3/8" NPT	-	-	-	3/8"	0.6650
B23BMP-G20050	2"	1/2" NPT	-	-	-	1/2"	0.4950
B23BMP-G250	1-1/2"	3/4" NPT	3.05"	2.50"	0.63"	3/4"	0.8500
B23BMP-G25050	2-1/2"	1/2" NPT	-	-	-	1/2"	0.1000
B23BMP-G300	2"	3/4" NPT	3.58"	3.00"	0.63"	3/4"	1.2700
B23BMP-G30050	3"	1/2" NPT	-	-	-	1/2"	-
B23BMP-G400	4"	3/4" NPT	4.68"	4.00"	0.63"	3/4"	2.2850

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
