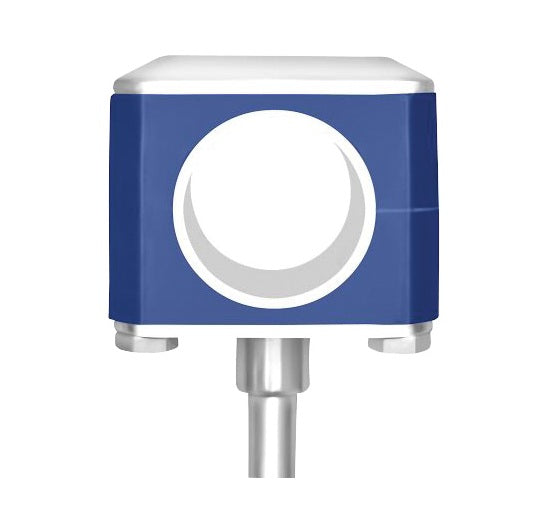

B24-BM-G300 Dixon Valve Sanitary Base Mount Tube Block Hanger - 3" Tube OD - Stainless Steel with Silicone Insert

B24-BM-G300 Dixon Valve Sanitary Base Mount Tube Block Hanger - 3" Tube OD - Stainless Steel with Silicone Insert

Save $51.28 Save $51.28
$128.20
$128.20 - $128.20
$128.20
$76.92
$76.92 - $76.92
$76.92

Dixon Sanitary Fittings Sanitary Base Mount Tube Block Hanger

For use in Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Specifications for Variant SKU: B24-BM-G300 Dixon
Features:
  • Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket.
  • There are no exposed threads or openings in hardware plates.
  • All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product.
  • Hanger threads match MSS 69 rod OD requirements.
  • Temperature Range -40°F to 320°F (-40°C to 160°C).
Construction:
  • One piece silicone insert - 80 durometer
  • Hardware: 304 & 316 stainless steel
Part Number Tube OD Weight(Lbs.)
B24-BM-G050 1/2" 0.2400
B24-BM-G075 3/4" 0.2400
B24-BM-G100 1" 0.2300
B24-BM-G150 1-1/2" 0.3200
B24-BM-G200 2" 0.4600
B24-BM-G250 2-1/2" 0.5500
B24-BM-G300 3" 0.7300
