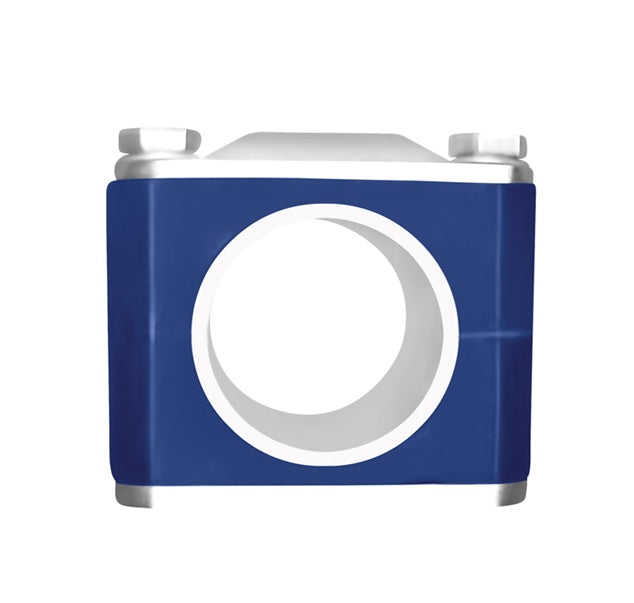

B24-WP-G400 Dixon Valve Sanitary Weld Plate Tube Block Hanger - 4" Tube OD - Stainless Steel with Silicone Insert

B24-WP-G400 Dixon Valve Sanitary Weld Plate Tube Block Hanger - 4" Tube OD - Stainless Steel with Silicone Insert

Save $45.87 Save $45.87
$114.68
$114.68 - $114.68
$114.68
$68.81
$68.81 - $68.81
$68.81

Dixon Sanitary Fittings Weld Plate Tube Block Hanger

For use in Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Specifications for Variant SKU: B24-WP-G400 Dixon
Features:
  • Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket.
  • There are no exposed threads or openings in hardware plates.
  • All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product.
  • Hanger threads match MSS 69 rod OD requirements
  • Temperature Range: -40°F to 320°F (-40°C to 160°C).
Construction:
  • One piece silicone insert - 80 durometer
  • Hardware: 304 & 316 stainless steel
Part Number Tube OD Weight(Lbs.)
B24-WP-G050 1/2" 0.2400
B24-WP-G075 3/4" 0.2200
B24-WP-G100 1" 0.2200
B24-WP-G150 1-1/2" 0.3000
B24-WP-G200 2" 0.4600
B24-WP-G250 2-1/2" 0.5400
B24-WP-G300 3" 0.7200
B24-WP-G400 4" 1.1200
B24-WP-G600 4" -
