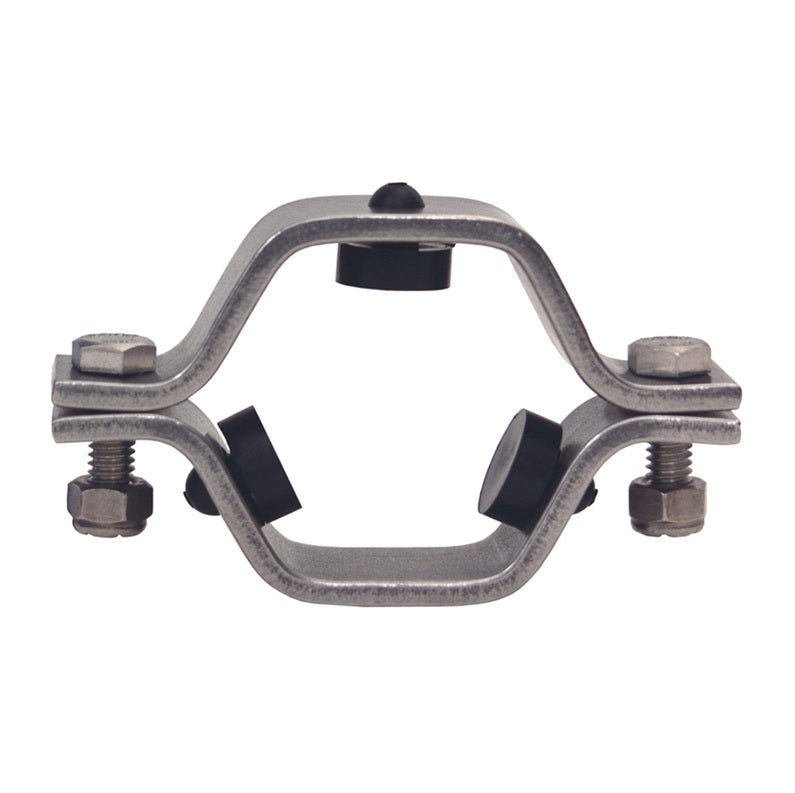

B24RGSFY-G50 Dixon Valve 304 Stainless Steel Hex Hanger with FKM Grommets - 1/2" Tube OD

B24RGSFY-G50 Dixon Valve 304 Stainless Steel Hex Hanger with FKM Grommets - 1/2" Tube OD

Save $14.19 Save $14.19
$35.47
$35.47 - $35.47
$35.47
$21.28
$21.28 - $21.28
$21.28

Dixon Sanitary Fittings Sanitary Hex Hanger with FKM Grommets - 304 Stainless Steel

Max temperature: 392°F (200°C)
Specifications for Variant SKU: B24RGSFY-G50 Dixon
Features:
  • Hex style hangers can be equipped with 3/8" NPT or all thread: 3/8-16 or 1/2-13
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGSFY-G50 1/2" -
B24RGSFY-G75 3/4" 0.5490
B24RGSFY-G100 1" 0.4450
B24RGSFY-G150 1-1/2" 0.5150
B24RGSFY-G200 2" 0.6100
B24RGSFY-G250 2-1/2" 0.6860
B24RGSFY-G300 3" 0.8000
B24RGSFY-G400 4" 0.9750
B24RGSFY-G600 6" -
B24RGSFY-G800 8" 1.5000
B24RGSFY-G1000 10" -
B24RGSFY-G1200 12" -
