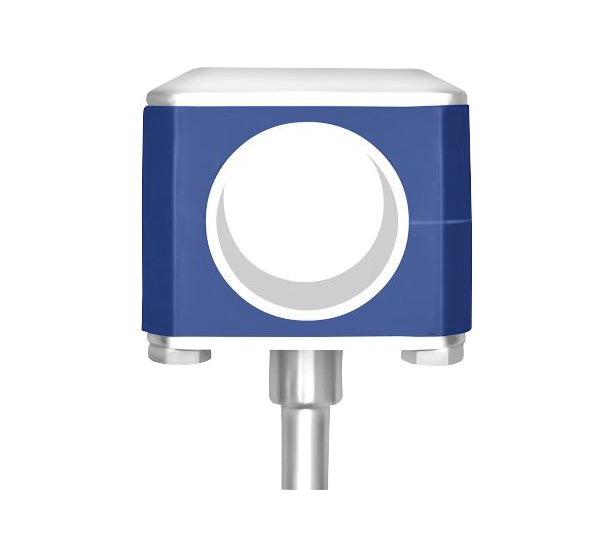

B24V-BM-G150 Dixon Valve Base Mount Pipe Block Hanger - 1-1/2" Tube OD - 304 Stainless Steel with Silicone Insert

B24V-BM-G150 Dixon Valve Base Mount Pipe Block Hanger - 1-1/2" Tube OD - 304 Stainless Steel with Silicone Insert

Save $26.91 Save $26.91
$67.27
$67.27 - $67.27
$67.27
$40.36
$40.36 - $40.36
$40.36

Dixon Sanitary Fittings Base Mount Pipe Block Hanger

For use in Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Specifications for Variant SKU: B24V-BM-G150 Dixon
Features:
  • Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket.
  • There are no exposed threads or openings in hardware plates.
  • All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product.
  • Hanger threads match MSS 69 rod OD requirements
  • Temperature Range: -40°F to 320°F (-40°C to 160°C).
Construction:
  • One piece silicone insert - 80 durometer
  • Hardware: 304 & 316 stainless steel
Part Number Tube OD
B24V-BM-G100 1"
B24V-BM-G150 1-1/2"
B24V-BM-G200 2"
B24V-BM-G250 2-1/2"
