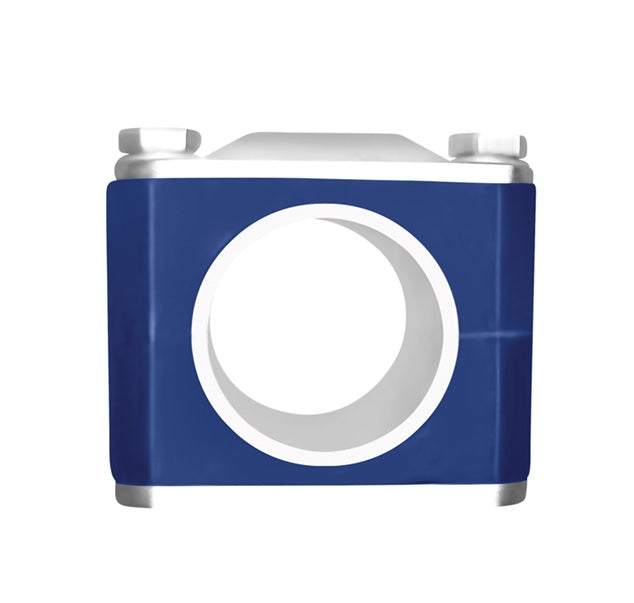

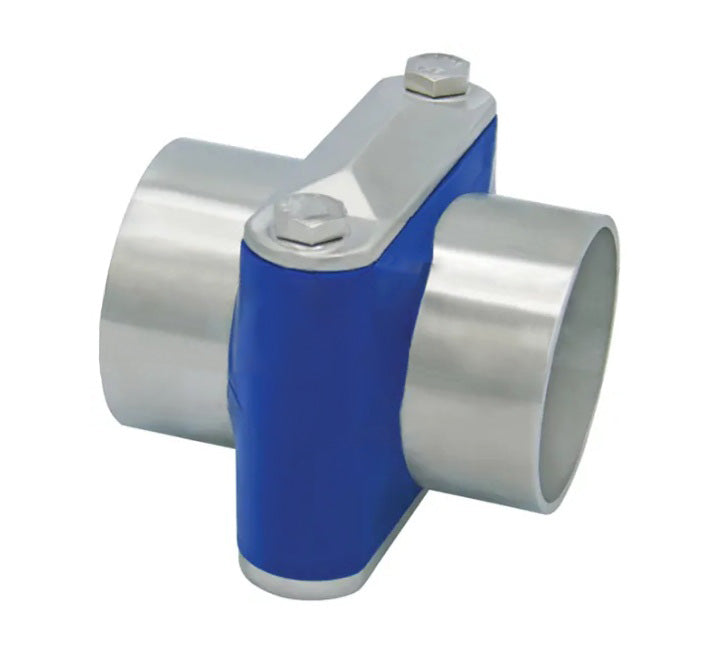

B24V-WP-G400 Dixon Valve Weld Plate Pipe Block Hanger - 4" Tube OD - 304 Stainless Steel with Silicone Insert
B24V-WP-G400 Dixon Valve Weld Plate Pipe Block Hanger - 4" Tube OD - 304 Stainless Steel with Silicone Insert

B24V-WP-G400 Dixon Valve Weld Plate Pipe Block Hanger - 4" Tube OD - 304 Stainless Steel with Silicone Insert

Save $45.28 Save $45.28
$113.20
$113.20 - $113.20
$113.20
$67.92
$67.92 - $67.92
$67.92

Dixon Sanitary Fittings Weld Plate Pipe Block Hanger

For use in Clean rooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing.

Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines
Specifications for Variant SKU: B24V-WP-G400 Dixon
Features:
  • Insulation envelope: reduced OD allows hanger to be buried under the insulation jacket.
  • There are no exposed threads or openings in hardware plates.
  • All plates are polished, bolts are cleaned and nuts are lubricated with FDA approved product.
  • Hanger threads match MSS 69 rod OD requirements
  • Temperature Range: -40°F to 320°F (-40°C to 160°C).
Construction:
  • One piece silicone insert - 80 durometer
  • Hardware: 304 & 316 stainless steel
Part Number Tube OD Weight (lbs)
B24V-WP-G050 1/2" -
B24V-WP-G100 1" 0.3200
B24V-WP-G150 1-1/2" 0.4600
B24V-WP-G200 2" 0.5400
B24V-WP-G250 2-1/2" 0.6350
B24V-WP-G300 3" 0.9000
B24V-WP-G400 4" -
